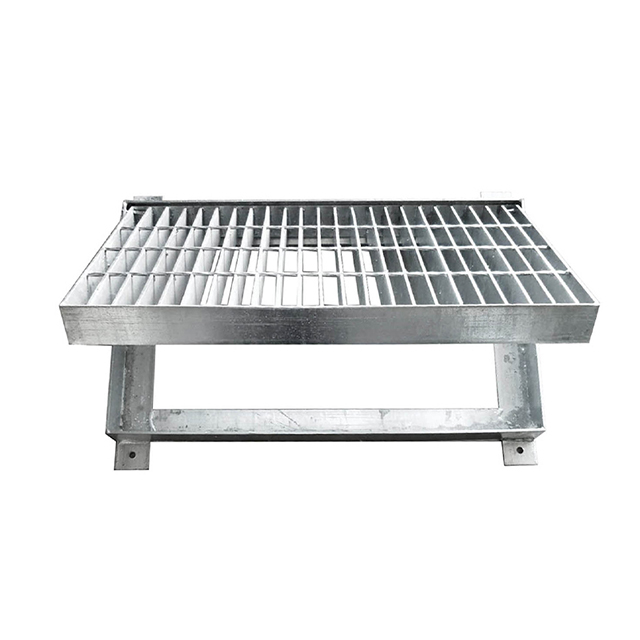

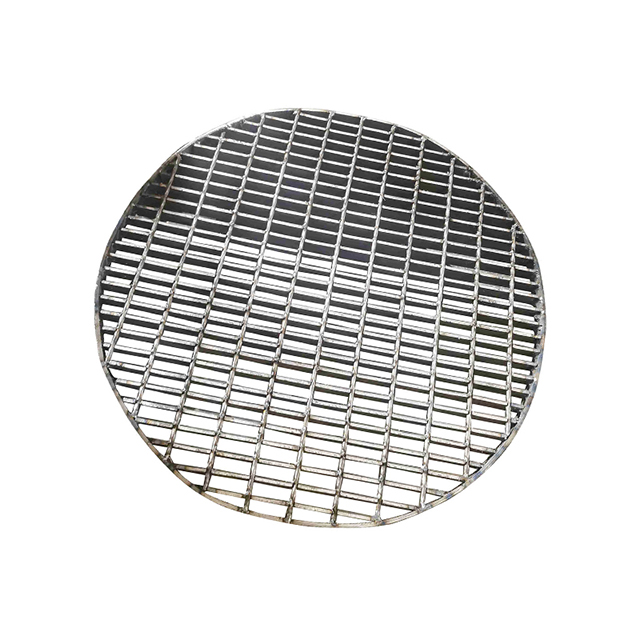

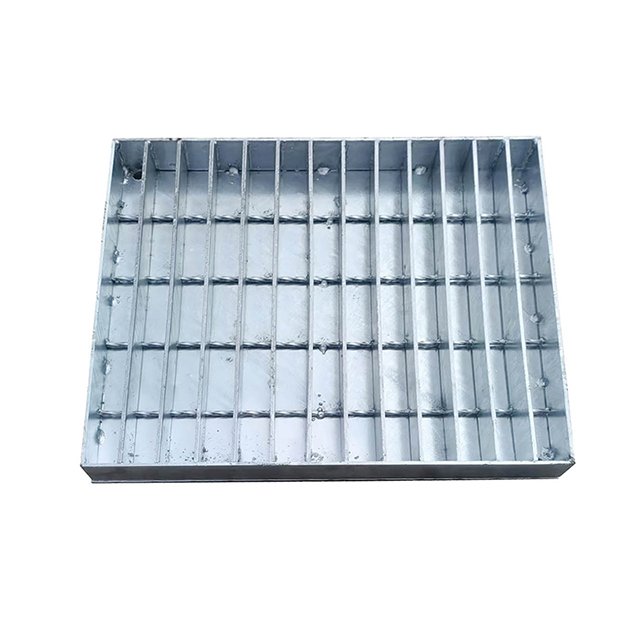

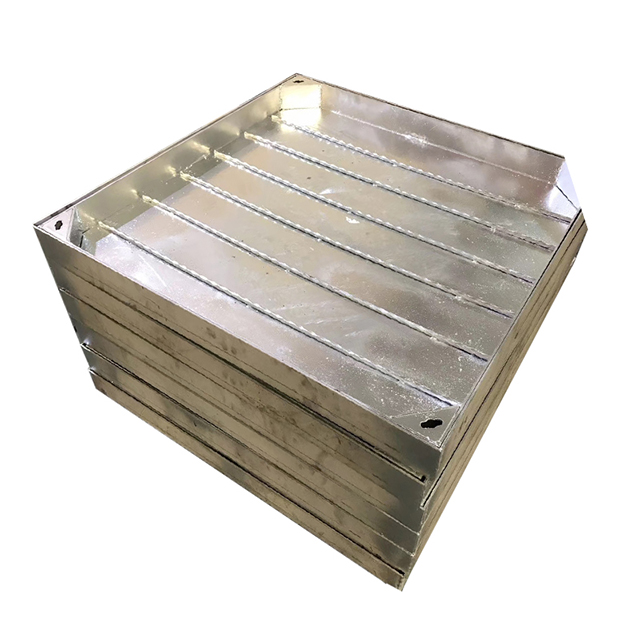

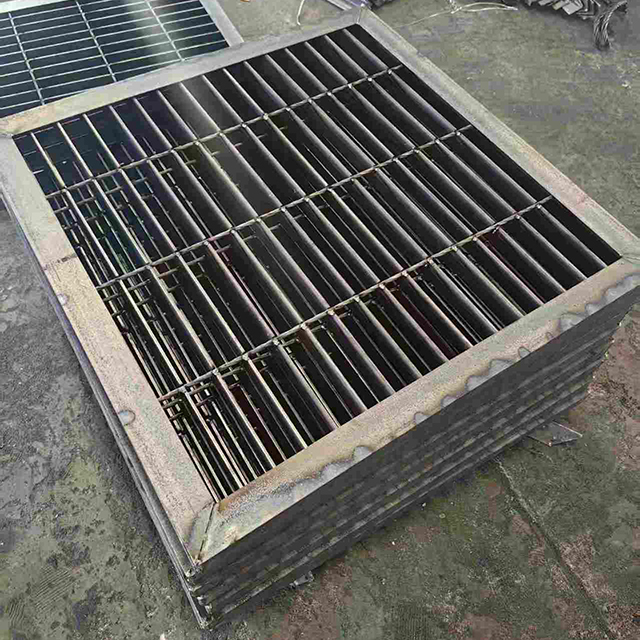

Drain Trench Cover

>> Product Introduction

Drain trench covers are heavy-duty grates designed to provide safe, durable coverage for drainage channels, trenches, and culverts. Made from cast iron, galvanized steel, or composite materials, they ensure high load-bearing capacity while allowing efficient water flow.

Key Features:

• High strength (supports 5-25 tons, depending on material)

• Slip-resistant surfaces (serrated or grating designs)

• Corrosion-resistant (suitable for outdoor/industrial use)

• Easy installation & maintenance (removable for cleaning)

• Applications: Roadside drainage, industrial plants, parking lots, and municipal wastewater systems.

Keywords: heavy-duty trench grating, drainage cover grates, industrial trench covers

>> Product Advantage

1. Exceptional Load-Bearing Capacity

Our EN124-compliant trench covers support 5-25 tons (Class A15-F900), with ductile iron options reaching 40-ton capacity – ideal for highways and industrial zones. Third-party tested with 2 million fatigue cycles.

*Keywords: heavy-duty trench grating, high-load drainage covers, EN124 compliant grates*

2. Advanced Anti-Slip Safety

Deep serrations (5-8mm) or epoxy grit coating achieves 0.85+ friction coefficient, exceeding DIN 51130 R10 standards for wet/oily environments like fuel stations.

Keywords: non-slip trench covers, OSHA-compliant drainage grates, slip-resistant channel covers

3. Corrosion-Resistant Materials

Choose from:

Ductile iron (EN-GJS-500-7) with 300μm epoxy coating

Galvanized steel (100μm zinc)

FRP composite for chemical plants

Keywords: corrosion-proof trench grating, chemical-resistant drain covers, marine-grade grating

4. Quick-Install Design

Pre-drilled bolt holes and interlocking edges enable 50% faster installation vs. traditional covers. No welding required – 1 worker can install 20m/hour.

Keywords: modular trench covers, easy-install drainage grating, removable access grates

5. Low Lifetime Costs

20-year lifespan with zero maintenance (epoxy-coated iron). Recyclable materials reduce disposal fees by 60% vs. concrete alternatives.

Keywords: maintenance-free trench covers, sustainable drainage solutions, long-life grating systems

Technical Trust Builders:

Certified load testing (EN124, BS EN 1433)

Salt spray resistance >5,000 hours (ISO 9227)

Custom markings (logo/load class embossing)

Long-Tail Keywords:

40-ton capacity ductile iron trench cover

fuel station anti-slip drainage grates

chemical plant composite trench covers

quick-release drainage channel grating

municipal stormwater trench covers

>> Technical Parameters

Additional Technical Notes:

Custom Fabrication: Laser-cut logos/load class markings (±1mm precision)

Testing: Third-party certified for fatigue (2M cycles at max load)

Accessories: Available with locking mechanisms and rubber seals

Lead Time: 7-15 days (standard), 3-4 weeks (custom)

Keywords for Technical SEO:

EN124 compliant trench cover specifications

90-ton load drainage grate technical data

corrosion-resistant ductile iron grate parameters

slot drainage cover dimensional standards

Why This Table is Effective:

Material Comparison - Clearly shows differences between iron/steel/FRP

Certification Focus - Highlights EN/ISO standards critical for infrastructure projects

Precision Metrics - Includes coating thickness, slot widths, and impact values

Installation Flexibility - Shows multiple mounting options

Customization - Notes logo/label capabilities

Need to add chemical resistance charts or comparison tables vs. concrete alternatives?

Sample Engineering Query Solution:

Need trench covers for an airport fuel farm with 25t load capacity and spark-proof properties.

→ Recommendation: *Epoxy-coated ductile iron, Class D400, R13 grit surface, 50% open area.

>> Product Uses

1. Road & Highway Drainage

Designed for Class A15-F900 load ratings, our trench covers withstand heavy traffic (up to 90-ton axle loads) while preventing debris clogging. Galvanized steel options resist road salt corrosion.

Keywords: highway drainage grates, road trench covers, heavy-duty stormwater grating

2. Industrial Facilities

Used in factory yards and loading docks, ductile iron covers (40-ton capacity) support forklifts. FRP versions provide chemical resistance in acid wash areas.

Keywords: industrial trench grating, chemical plant drainage, forklift-rated covers

3. Municipal Wastewater Systems

Epoxy-coated iron covers endure H₂S gas in sewer systems. 50-70% open area ensures uninterrupted flow during heavy rains.

Keywords: sewer trench covers, wastewater drainage grates, corrosion-proof access lids

4. Fuel Stations & Airports

Non-sparking aluminum or grit-coated iron covers meet ATEX Zone 1 standards. Slotted designs prevent fuel accumulation.

Keywords: explosion-proof trench covers, airport fuel farm grating, anti-static drainage

5. Commercial Landscapes

Decorative cast iron covers (vintage/ornamental patterns) blend with urban hardscapes while handling 5-ton pedestrian loads.

Keywords: architectural trench grating, landscape drainage covers, aesthetic grates

6. Ports & Marine Terminals

316 stainless steel resists saltwater corrosion on dock drainage channels. Reinforced frames withstand container loader traffic.

Keywords: marine trench covers, port drainage systems, saltwater-resistant grates

>> Product Operate Guide

• Proper Installation

Align covers with trench edges, ensuring even load distribution. Use M16 bolts or hinged clamps for secure fastening.

• Load Management

Place heavy loads over support beams, not unsupported spans. Never exceed rated capacity (5-90 tons).

• Debris Prevention

Regularly clear slot openings to maintain drainage flow. Pressure wash quarterly in high-debris areas.

• Corrosion Control

For epoxy-coated covers, inspect annually for coating wear. Touch up chips promptly with matching epoxy paint.

• Safety Check

Verify anti-slip surfaces remain effective. Replace if serrations wear below 3mm depth.

Keywords: trench cover installation, drainage grate maintenance, heavy-duty cover safety

>> Product Video

>> FAQ

1. What load classes do you offer?

We provide EN124-compliant covers from Class A15 (1.5t) to F900 (90t). Custom options available for specialized projects like airports/military bases.

2. How do I prevent theft?

Our bolt-down and hinged designs deter theft. Optional locking mechanisms with unique keys provide added security.

3. Can covers withstand chemical exposure?

Yes. Epoxy-coated (300μm) and FRP covers resist acids, fuels, and wastewater chemicals (pH 1-14).

4. Are slot patterns customizable?

Absolutely. Choose 5-15mm slots or grating patterns (30-70% open area) to match flow requirements.

5. What’s the lifespan?

20+ years for epoxy-coated iron in harsh environments. Galvanized steel lasts 15+ years with proper maintenance.

Keywords: trench cover load ratings, anti-theft drainage grates, chemical-resistant covers
