English EnglishSteel wire mesh is a versatile metal fabrication product consisting of interwoven or welded steel wires arranged in precise grid patterns, forming screen-like structures with controlled aperture sizes for fencing, concrete reinforcement, screening, and filtration applications—distinctly different from rigid steel grating designed for load-bearing flooring. Unlike platform grating's bearing bar construction, wire mesh stainless steel and galvanized steel wire mesh offer flexible configurations suitable for security enclosures, architectural facades, and industrial separation systems. Tianhe manufactures welded steel wire mesh, stainless steel woven wire mesh, and expanded metal products in panels and rolls, serving construction contractors, industrial processors, and agricultural operations requiring durable screening solutions.
Welded wire mesh stainless steel features perpendicular wires resistance-welded at each intersection, creating rigid rectangular grids ideal for concrete reinforcement and security fencing. Our stainless steel welded wire mesh panels utilize 304 or 316 grade austenitic stainless steel, providing superior corrosion resistance for marine environments and food processing facilities. Galvanized steel welded wire mesh with hot-dip zinc coating (70-90μm thickness) offers economical outdoor durability for construction sites and perimeter fencing. Standard steel wire mesh panels are available in 1x2m, 2x3m, and custom sizes up to 3x6m, with wire diameters ranging from 2mm to 12mm and aperture options from 12.5mm (1/2") to 150mm (6").

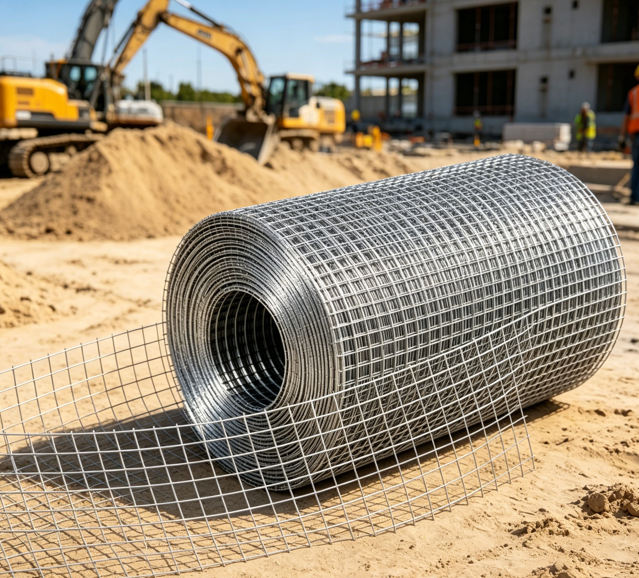

Steel wire mesh for concrete applications follows ASTM A185 specifications, commonly supplied as 6x6-W1.4xW1.4 fabric for slab reinforcement, reducing cracking and improving load distribution in driveways, sidewalks, and industrial floors. Concrete steel wire mesh sheets integrate seamlessly with rebar systems, accelerating installation compared to traditional tied reinforcement. Our stainless steel welded wire mesh variants prevent rust staining in architectural concrete and chloride-exposed structures.

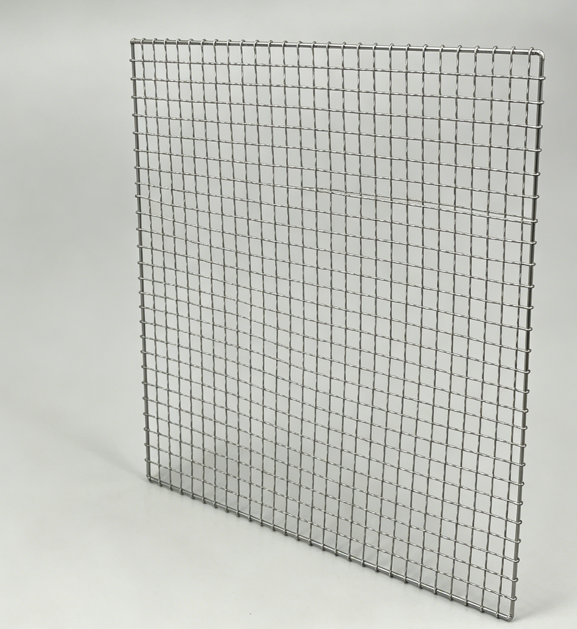

Stainless steel woven wire mesh employs interlaced wires in over-under weaving patterns—plain weave for general screening, twill weave for balanced strength, and Dutch weave for high-precision filtration. Advance steel woven wire mesh design incorporates pre-crimped wires that lock intersections without welding, ensuring dimensional stability in vibrating screen applications. Our stainless steel wire screen mesh is available in mesh counts from 4x4 (coarse) to 200x200 (fine), with 316 stainless steel wire mesh recommended for pharmaceutical processing and seawater filtration due to its molybdenum-enhanced chloride resistance.
Stainless steel mosquito wire mesh (18x16 or 20x20 mesh count) provides insect protection for residential and commercial window screens, fabricated from T304 or aluminum alloy wire with 0.23mm-0.28mm diameter. Wire mesh screen stainless steel wire mesh screen products maintain superior tensile strength compared to fiberglass alternatives, resisting pet damage and weathering. Stainless steel screen wire mesh rolls ship in widths from 0.6m to 1.5m, with selvaged edges preventing unraveling during installation.
Stainless steel mesh wire specifications include T304 (18% Cr, 8% Ni) for general corrosion resistance and T316 (16% Cr, 10% Ni, 2% Mo) for superior pitting resistance in chloride environments. All stainless steel wire mesh panels undergo passivation treatment per ASTM A967, maximizing chromium oxide layer formation. Galvanised steel wire mesh options include hot-dip galvanizing (ASTM A641 Class 3, minimum 610g/m² zinc) and electro-galvanizing (ASTM A653 CS Type B, 60-120g/m² zinc) for cost-effective indoor applications.

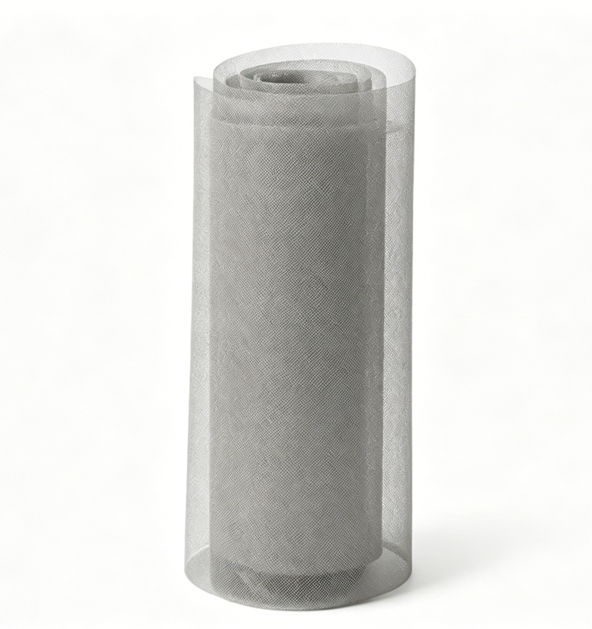

Wire mesh hole fill fabric stainless steel mesh features tightly woven construction (60x60 to 100x100 mesh) for dust control and fine particle retention in HVAC systems and grain storage. Stainless steel wire mesh roll format allows economical field cutting, supplied in master rolls up to 30 meters length for large-scale fencing and partition projects.
Steel wire mesh sheet applications span eight industrial sectors: security perimeter fencing (9-gauge welded, 50x50mm aperture with barbed wire topping), mining vibrating screens (high-tensile crimped mesh resisting abrasion), concrete reinforcement (WWF fabric per ACI 318 building code), poultry enclosures (25mm hexagonal galvanized mesh), window protection screens (aluminum or stainless 18x16 mesh), architectural cladding (decorative woven patterns in building facades), industrial filtration (Dutch weave stainless capturing 10-200 micron particles), and sports facility barriers (PVC-coated chain link for tennis courts).
Welded wire mesh stainless steel panels integrate with automated fence systems using galvanized posts and anti-corrosion fasteners. Our wire steel mesh engineering team provides CAD drawings for custom aperture sizing, wire gauge selection, and panel edge treatment (selvaged, crimped, or welded to frames). Stainless steel wire mesh screen products ship with installation hardware including U-clips, hog rings, and tension bars.
Standard galvanized steel wire mesh panels (2x3m, 50x50mm, 4mm wire) ship same-day from inventory; custom stainless steel wire mesh roll orders complete within 7-10 business days. Specialty wire mesh screen stainless steel configurations with Dutch weave or ultra-fine apertures require 12-15 days including quality inspection and mill certification.
Request free samples of welded steel wire mesh, stainless steel woven wire mesh, or concrete steel wire mesh for your project. Contact Tianhe's technical team at +86-18169852266 for mesh specification recommendations, aperture size calculations, and custom panel fabrication quotes. Download our complete wire mesh catalog featuring material grade comparisons and installation guidelines.
