>> Product Introduction

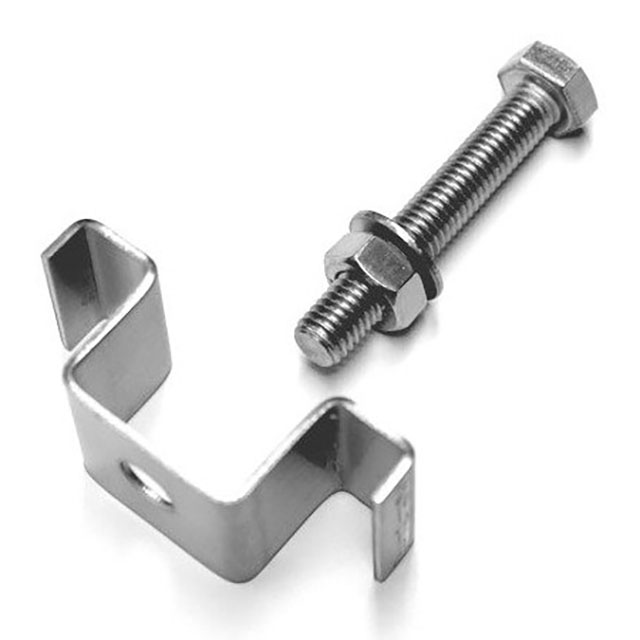

Stainless steel grating clips are professional heavy-duty fasteners used to fix steel grating, stainless steel grating and FRP grating firmly. Also known as grating clamps and grating fasteners, these stainless steel grating fixing clips adopt a non-weld design, which is widely recognized in industrial installation. These corrosion-resistant clips typically feature a spring-loaded or wedge-shaped design that creates strong mechanical retention between the grating and its supporting structure. Made from grade 304 or 316 stainless steel, they offer excellent durability and weather resistance. These clips are essential for industrial platforms, walkways, and drainage systems where secure, vibration-resistant installation is required. They provide quick installation, allow for thermal expansion/contraction, and maintain a clean appearance while ensuring safety and stability in various architectural and industrial applications.
>> Product Advantage
Our stainless steel grating clips are engineered to provide a superior, reliable, and efficient method for securing grating panels without the need for welding.
1. Superior Corrosion Resistance for Longevity
Manufactured from premium 304 or 316 stainless steel, our clips offer exceptional resistance to rust, chemicals, and harsh environmental conditions. This ensures a long service life, even in demanding environments like coastal areas, chemical plants, or food processing facilities. The inherent durability of stainless steel eliminates the risk of fastener failure due to corrosion, guaranteeing a secure hold for years and significantly reducing long-term maintenance costs.
Keywords: corrosion resistant grating fasteners, stainless steel grating clips, 316 stainless steel wedge clips
2. Welding-Free, Rapid Installation System
Our clip system allows for quick and easy installation, drastically reducing labor time and project costs. There's no need for hot work permits, specialized welding equipment, or skilled welders. The simple hammer-on or torque-on installation process means panels can be secured or removed in seconds, facilitating easy future access for inspection or maintenance beneath the grating, which enhances overall operational efficiency.
Keywords: welding-free grating fasteners, easy install grating clips, removable grating retention system
3. High Strength and Vibration Resistance
Engineered with a robust wedge or spring design, our clips create a powerful mechanical lock that firmly secures the grating to the supporting structure. They are designed to withstand high dynamic loads and constant vibration from foot and vehicular traffic, preventing grating panels from shifting, rattling, or lifting. This ensures a safe, stable, and rattle-free walking surface, meeting rigorous safety standards.
Keywords: high strength grating clips, vibration resistant fasteners, non-slip grating fixings
4. Versatility and Cost-Effectiveness
Our clips are designed to be universally compatible with various grating types (steel, aluminum, FRP) and bearing bar sizes. This versatility simplifies inventory management. By eliminating welding, you save on labor, equipment, and energy costs. The reusable nature of many of our clips also provides further cost savings during any modification or reconfiguration of grating layouts in the future.
Keywords: universal grating fasteners, cost-effective grating installation, reusable stainless steel clips

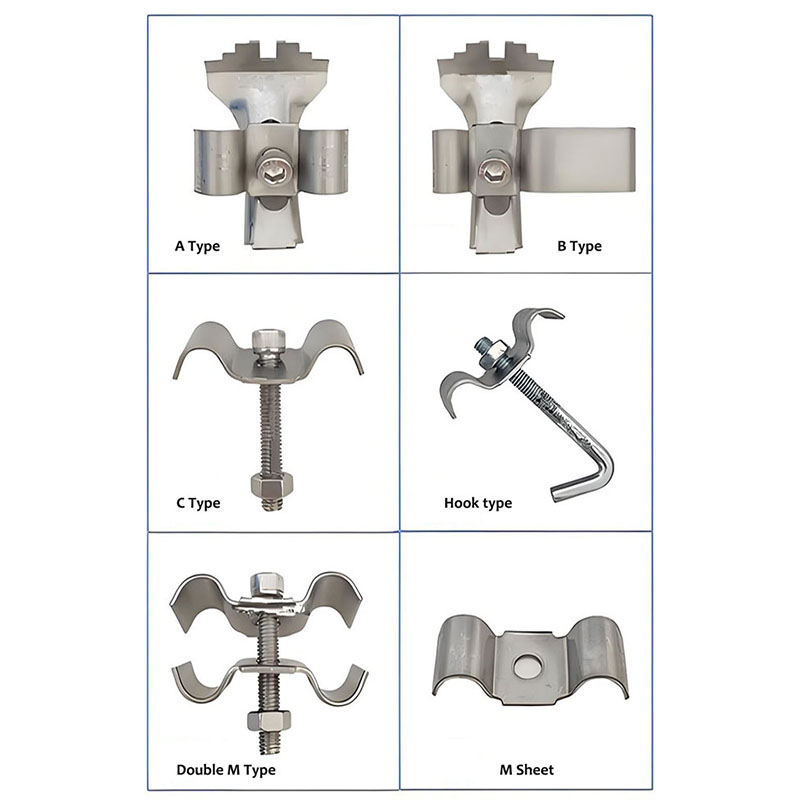

Product Types
A Type B Type C Type Hook Type Double M Type M Sheet Type
>> Technical Parameters
| Parameter Category | Specification Details | Standards & Notes |
| Material | Grade 304 Stainless Steel, Grade 316 Stainless Steel | 304: General purpose, good corrosion resistance. 316: Superior corrosion resistance for harsh/coastal environments. |
| Load Capacity (Shear) | ≥ 4.5 kN (approx. 1,000 lbf) per clip | Capacity varies based on clip model and grating/beam configuration. Testing compliant with relevant standards. |
| Standard Sizes | Fits standard bearing bar heights: 20mm, 25mm, 30mm, 40mm, etc. | Designed to accommodate a range of grating panel thicknesses. Specific models are height-specific. |
| Installation Method | Mechanical (Hammer-On or Torque-On) | No welding or drilling required. Ensures a secure, vibration-resistant grip on the bearing bar and support beam. |
| Surface Finish | Mill Finish, Electropolished | Standard mill finish is typical. Electropolishing available for enhanced corrosion resistance and cleanability. |
| Packaging | Bulk Boxes or Custom Count Bags | Standard packaging is 100 clips per box. Custom quantities available for large project requirements. |
| Standards Compliance | Manufactured to meet ISO 9001 quality standards. | Suitable for use in systems requiring compliance with OSHA, ANSI, and other safety standards for walkways. |
>> Product Uses
1. Industrial Mezzanines and Work Platforms
These clips are essential for securing grating on elevated platforms, walkways, and mezzanines in manufacturing plants and industrial facilities. They provide reliable, vibration-resistant attachment that withstands constant foot traffic and equipment movement while allowing for thermal expansion and future maintenance access.
2. Water Treatment and Marine Facilities
Ideal for coastal walkways, pier decks, and water treatment plants where corrosion resistance is critical. The stainless steel construction withstands constant moisture exposure and harsh chemicals while maintaining secure grating attachment without corrosion-related failure.
3. Stair Treads and Safety Walkways
Perfect for securing anti-slip grating on stair systems and escape routes. The clips ensure firm, rattle-free installation that maintains safety under heavy foot traffic while allowing for easy removal when individual treads need replacement or underlying structure requires inspection.
4. Food Processing and Pharmaceutical Plants
Essential in hygienic environments where welding is prohibited. These clips provide clean, corrosion-resistant fastening that meets sanitary standards, allowing for frequent removal for thorough cleaning and sterilization processes beneath the grating.
5. Temporary Installations and Modular Structures
Ideal for exhibition platforms, temporary access ways, and modular structures where non-permanent fixing is required. The clips enable quick installation and dismantling without damaging the grating or supporting structure, providing cost-effective reusable fastening solutions.
>> Product Operate Guide
For secure installation, first ensure the supporting structure is clean and level. Position the grating panel correctly on the supports. Align the clip's lower jaw beneath the support beam and hook the upper jaw over the grating bearing bar. Using a hammer or mallet, firmly tap the clip until it is fully seated and tight. For torque-applied models, use a wrench to tighten the securing bolt. Regularly inspect clips for tightness, especially in high-vibration areas, and retighten or replace as necessary to maintain safety and stability.
>> Product Video
>> FAQ
1. Q: What's the difference between 304 and 316 stainless steel clips?
A: Both offer good corrosion resistance, but 316 contains molybdenum for enhanced protection against chlorides, making it ideal for marine or chemical environments where superior corrosion resistance is required for long-term durability.
2. Q: Are these clips compatible with all types of grating?
A: Our clips are designed to work with most standard steel, aluminum, and FRP grating systems. They accommodate various bearing bar heights, but we recommend verifying specific compatibility with your grating profile before purchase.
3. Q: Can these clips be installed without welding?
A: Yes, that's their primary advantage. They feature a mechanical design that secures grating through hammer-on or torque-on installation, eliminating need for welding and allowing for easy future adjustments or removals.
4. Q: What's the typical load capacity per clip?
A: Our standard clips have a shear capacity of approximately 4.5 kN (1,000 lbs) each. Actual performance may vary based on specific installation conditions and grating type, with higher capacity options available.
5. Q: Are the clips reusable?
A: Yes, most designs can be carefully removed and reinstalled multiple times without significant performance loss, making them ideal for applications requiring periodic access or temporary installations.
