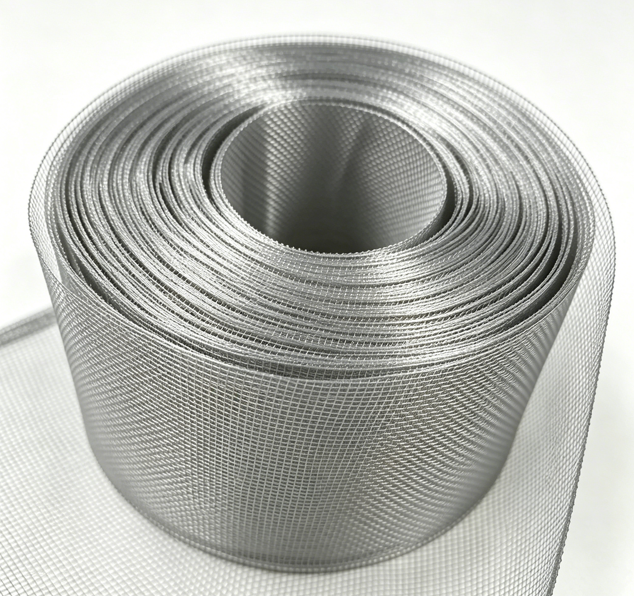

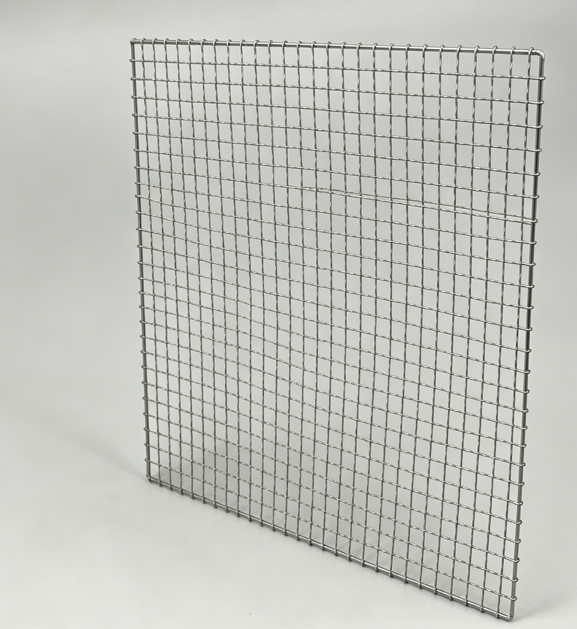

Premium Woven Stainless Steel Wire Mesh is a precision-woven, high-strength metal mesh with stable structure, excellent corrosion resistance and hygienic performance. Adopting professional industrial weaving technology, the mesh features uniform hole size, flat surface and high toughness。
Grade: 304, 304L, 316, 316L stainless steel
Weave Type: Plain weave, Twill weave, Dutch weave, Reverse Dutch weave
Size Range: Custom mesh count 1–300 mesh; conventional roll width 0.5m–3m; standard roll length 10m/20m/30m; custom sheet size and special dimensional support available
Excellent Corrosion & Rust Resistance: Premium stainless steel material effectively resists oxidation, salt spray, acid and alkali corrosion, suitable for harsh working environments
Precision Weaving & Stable Structure: Uniform aperture distribution, flat mesh surface and consistent wire tension, no aperture distortion or deformation
High Strength & Long Service Life: High tensile and impact resistance, not easy to break, durable for long-term continuous operation
Food-Grade Hygienic Performance: Smooth burr-free surface, no residue accumulation, easy to clean and sterilize, compliant with hygienic production standards
Stable Filtration & Ventilation: Balanced air permeability, light transmittance and precise filtration accuracy, ensuring stable screening and separation effect
Weather & High Temperature Resistant: Excellent high-temperature resistance and outdoor weatherability, suitable for indoor and outdoor all-scenario use
Item | Specification Details |
|---|---|
Material Grade | 304, 304L, 316, 316L Stainless Steel |
Weave Pattern | Plain / Twill / Dutch / Reverse Dutch Weave |
Mesh Count | 1 – 300 Mesh (customizable) |
Wire Diameter | 0.02mm – 3.0mm (according to mesh count) |
Aperture Size | 0.05mm – 20mm |
Standard Size | Width: 0.5m–3m; Length: 10m/20m/30m (roll); Custom sheet size |
Surface Treatment | Electropolished / Pickled & Passivated / Polished (smooth, burr-free) |
Temperature Resistance | Up to 800°C (depending on material grade) |
Quality Standard | ASTM Standard, Strict Factory Inspection |
304 Stainless Steel: Cost-effective, excellent anti-rust and oxidation resistance, suitable for general indoor, ventilation, filtration and conventional protection scenarios
304L Stainless Steel: Low carbon version, better welding performance, not easy to produce welding corrosion, ideal for deep processing and welded mesh products
316 Stainless Steel: Added molybdenum element, superior acid, alkali and salt spray resistance, suitable for chemical and marine environments
316L Stainless Steel: Ultra-low carbon marine grade material, excellent corrosion resistance and high hygienic level, perfect for food, pharmaceutical, medical and severe corrosive environments
Industrial Filtration: Petrochemical filtration, liquid and solid separation, industrial dust removal and screening
Food & Pharmaceutical Industry: Raw material screening, hygienic filtration, sterile isolation and processing protection
Environmental Protection Equipment: Ventilation nets, dust-proof nets, waste gas and water treatment filter mesh
Mechanical & Construction: Equipment protective isolation nets, construction safety nets, anti-blocking protective mesh
Architectural Decoration: Building facade screening, interior partition mesh, decorative metal mesh curtain wall
Daily Protection: Window anti-mosquito mesh, anti-theft protective mesh, ventilation isolation mesh
FAQ
Q1: Which material grade should I choose? A1: 304/304L is recommended for conventional indoor, ventilation and general filtration use with high cost performance. 316/316L is suitable for marine, chemical, salt spray, food and pharmaceutical harsh environments requiring higher corrosion resistance.
Q2: Can you provide custom size and processing? A2: Yes. We support full-size customization and deep processing including cutting, framing, bending and welding to meet different installation and equipment matching needs.
Q3: Is the mesh surface hygienic and easy to clean? A3: All meshes adopt smooth polished surface treatment with no burrs and no dead corners. It is not easy to accumulate dust and dirt, supports water washing and high-temperature sterilization, fully meeting hygienic industry standards.
Q4: Will the mesh deform during long-term use? A4: Adopting precision tight weaving process with high tensile strength, the mesh features stable structure and is not easy to deform or loose under normal use, with long service life.
Q5: What is your product quality standard? A5: All products comply with ASTM international standards, with raw material inspection and finished product dimensional & performance testing, providing stable and reliable quality.
