Compound Steel Grating

>> Product Introduction

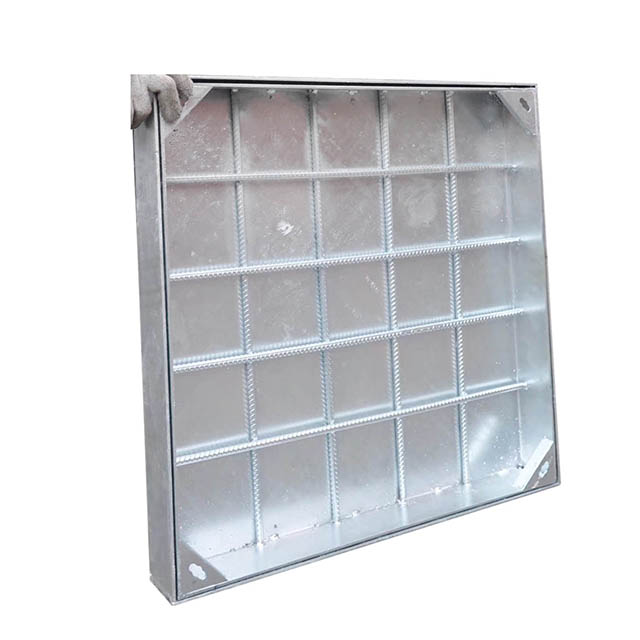

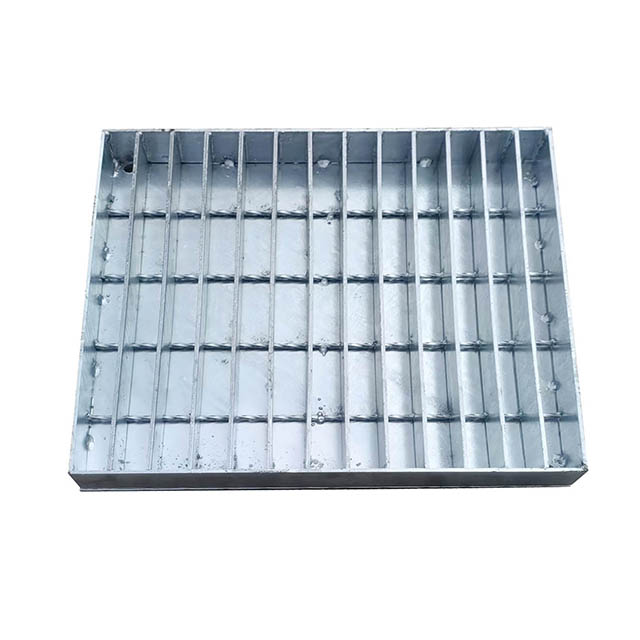

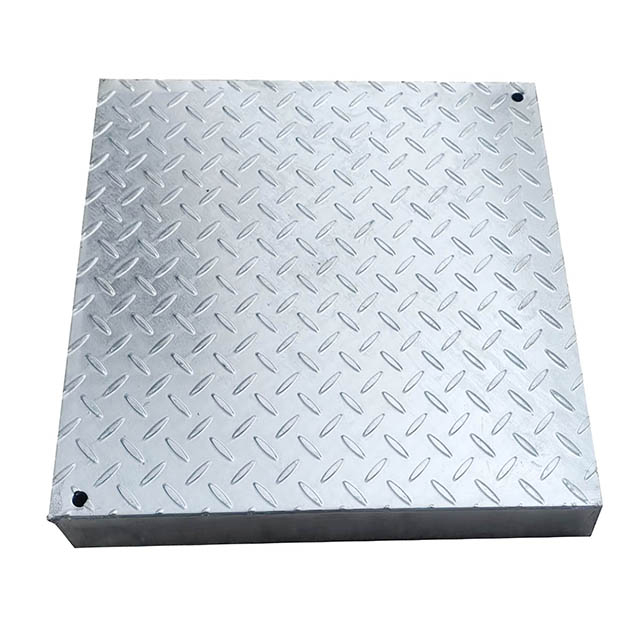

Compound Steel Grating is a heavy-duty industrial flooring solution that combines a steel grating framework with a solid steel plate surface. This hybrid design delivers superior load-bearing capacity (up to 10 tons/m²) while maintaining drainage and ventilation through side openings.

Key Features:

• Dual-function surface: Solid plate for small-item support + open edges for debris/fluid drainage.

• Ultra-durable: Hot-dip galvanized or stainless steel options resist corrosion in chemical/oil industries.

• Safety-focused: Anti-slip serrated plate surface meets OSHA standards.

• Typical Applications: Oil refineries, power plant walkways, offshore platforms, and mining facilities where both full-surface support and partial drainage are required.

Keywords: heavy-duty compound grating, steel plate grating, industrial drainage flooring.

>> Product Advantage

• Dual-Function Hybrid Design

Combining a solid steel plate surface with perimeter grating openings, our compound grating provides 100% small-item support while allowing 30-50% drainage efficiency. Ideal for platforms handling both tools/parts and liquids.

Keywords: hybrid steel grating, compound drainage grating, partial-closed metal flooring

• Extreme Load Capacity (10+ Tons/m²)

Reinforced crossbars and thicker bearing plates (6-12mm) enable 2X higher load-bearing than standard grating. Certified for heavy equipment areas in power plants and oil refineries.

Keywords: heavy-duty industrial grating, high-load metal flooring, OSHA-compliant work platforms

• Advanced Anti-Slip Safety

Laser-cut serrations (3-5mm depth) achieve 0.8+ friction coefficient, exceeding ANSI/NAAMM MBG 531 standards. Optional epoxy grit coating available for chemical plants.

Keywords: non-slip steel grating, safety work platform grating, oil-resistant metal flooring

• Corrosion-Resistant Options

Hot-dip galvanized (80μm zinc)

304/316 stainless steel versions

Passes 3000-hour salt spray tests for marine/offshore use

Keywords: corrosion-resistant compound grating, marine platform flooring, chemical plant grating

• Modular Installation System

Pre-drilled bolt holes and interlocking edges enable 50% faster installation vs welded solutions. Custom-cut service (±2mm tolerance) available.

Keywords: modular steel grating, prefabricated metal flooring, quick-install work platforms

• Thermal & ESD Adaptability

Withstands -40°C to 400°C

Static-dissipative versions (10^6 ohms) for explosive environments

Keywords: high-temperature resistant grating, anti-static metal flooring, hazardous area grating

>> Technical Parameters

Key Technical Notes:

All tolerances meet ISO 2768-mK standard

Custom machining available for special shapes (circular/arched)

Third-party inspection reports (SGS/BV) provided upon request

Keywords for SEO:

"heavy duty compound grating specifications"

"industrial steel grating load capacity table"

"anti-slip metal flooring technical data"

"corrosion resistant grating thickness standards"

"custom compound grating dimensions"

This table:

Organizes critical mechanical parameters vertically for easy scanning

Includes both standard and maximum ranges

References international standards for credibility

Highlights customization capabilities

Uses industry-specific terminology preferred by engineers

>> Product Uses

1. Oil & Gas Refineries

Designed for heavy equipment zones and spill containment areas, our compound grating provides full-surface support for workers/tools while allowing side drainage of oil/chemicals. The non-sparking stainless steel option is ideal for explosive environments.

Keywords: oil rig flooring, refinery walkway grating, hazardous area metal flooring

2. Power Generation Plants

Used in turbine platforms and boiler access areas, the hybrid design withstands high temperatures (500°C) and heavy loads (10+ tons/m²). The closed center prevents small part drops into critical machinery.

Keywords: power plant catwalks, turbine platform grating, high-temperature metal flooring

3. Chemical Processing Facilities

The seamless steel plate surface resists acid/alkali corrosion, while perimeter drainage handles chemical spills. Optional epoxy-coated or 316 stainless steel versions available.

Keywords: chemical plant walkways, acid-resistant grating, industrial spill containment flooring

4. Mining & Heavy Industry

Ideal for mineral processing plants and conveyor walkways, combining abrasion-resistant surfaces with debris-draining edges. Galvanized versions withstand outdoor weathering for 20+ years.

Keywords: mining platform grating, quarry walkways, heavy industrial metal flooring

5. Marine & Offshore Platforms

Saltwater-resistant galvanized or stainless steel options prevent corrosion in splash zones. The slip-resistant serrated surface ensures safety on wet decks.

Keywords: offshore platform grating, shipyard walkways, marine-grade metal flooring

6. Food & Pharmaceutical Plants

304/316 stainless steel versions meet hygienic design requirements. The fully sealed center prevents bacterial growth, while drainage edges comply with FDA/USDA standards.

Keywords: sanitary metal flooring, food-grade grating, pharmaceutical walkway systems

>> Product Operate Guide

1. Surface Preparation

Ensure the supporting framework is level and structurally sound. Clean the surface from debris before installation.

2. Proper Alignment

Align grating panels precisely, maintaining consistent spacing. Use clamps or bolts for secure fastening—weld only if specified.

3. Load Distribution

Position heavy loads over bearing bars, not unsupported gaps. Avoid point loads exceeding rated capacity.

4. Drainage Maintenance

Keep perimeter drainage channels clear of obstructions for optimal fluid flow.

5. Safety Checks

Regularly inspect for corrosion, loose fittings, or surface wear—recoat or replace damaged sections promptly.

Keywords: compound grating installation, metal flooring maintenance, industrial walkway safety tips

>> Product Video

>> FAQ

1. What makes compound grating different from standard steel grating?

Compound grating combines a solid steel plate center with perimeter drainage openings, offering full surface support + partial drainage – ideal for areas needing both small-item stability and liquid runoff.

2. What’s the maximum load capacity?

Standard models handle 5-12 tons/m², customizable for heavier needs. Load distribution must align with bearing bars for optimal performance.

3. How do I choose between galvanized and stainless steel?

Hot-dip galvanized (80μm) suits most industrial environments, while 304/316 stainless steel is mandatory for corrosive (chemical/marine) or hygienic (food/pharma) applications.

4. Is the serrated surface slippery when wet?

No. Our 3-5mm deep serrations achieve a 0.78+ friction coefficient, exceeding OSHA standards even in oily/wet conditions.

5. Can you customize shapes for curved platforms?

Yes. We laser-cut circular/arched panels (±2mm precision) and provide CAD drawings for approval before production.

Keywords: compound grating vs standard, steel grating load capacity, anti-slip metal flooring
