>> Product Introduction
Interlocking grating is a modular flooring system featuring self-locking panels that securely connect without welding or bolts. Made from galvanized steel, aluminum, or fiberglass, it provides quick installation and reconfiguration for temporary or permanent use.
Key Features:
Tool-free assembly – Panels snap together in minutes
High load capacity (3-5 tons/m²) with slip-resistant surfaces
Removable/reusable – Ideal for events, construction sites, and industrial maintenance
Applications: Temporary walkways, stage platforms, military bridging, and modular work platforms.
Keywords: modular metal grating, snap-together flooring, removable industrial grating
>> Product Advantage
1. Tool-Free Rapid Installation
Our patented interlock system enables 50% faster assembly vs. traditional grating – no welding or bolts required. Panels snap together securely in <5 mins per m², ideal for urgent projects or temporary setups.
Keywords: modular grating system, snap-lock flooring, quick-install work platforms
2. Heavy-Duty Load Capacity
Engineered with 4-6mm thick bearing bars, the system handles 3-5 tons/m² (tested per EN 1991-1-1). Steel/aluminum options available for different weight requirements.
Keywords: high-load interlocking grating, industrial temporary flooring, event stage grating
3. Reusable & Reconfigurable
Panels can be disassembled 100+ times without damage. Reuse across multiple projects – proven to last 10+ years in rental/staging applications.
Keywords: reusable metal grating, relocatable work platforms, sustainable temporary flooring
4. Safety-Enhanced Design
Serrated surfaces (0.78 friction coefficient)
Self-aligning edges eliminate trip hazards
Gap-free connections prevent tool/drop hazards
Keywords: OSHA-compliant interlocking grating, anti-slip modular flooring, construction safety grating
5. Corrosion-Resistant Options
Choose from:
Hot-dip galvanized steel (80μm zinc)
Marine-grade aluminum (5052 alloy)
Fiberglass (chemical-resistant)
Keywords: corrosion-proof interlocking grating, outdoor event flooring, chemical plant modular walkways
>> Technical Parameters
| Parameter | Specification | Standard |
| Material Options | • Galvanized Steel (Q235) | ASTM A123 / ASTM B209 |
| • Aluminum 5052/6061 | ||
| • FRP Fiberglass | ||
| Panel Dimensions | Standard: 1m×1m / 1m×2m | ISO 9001 |
| Max: 1.5m×3m | ||
| Load Capacity | 3-5 tons/m² (steel) | EN 1991-1-1 |
| 1-3 tons/m² (aluminum/FRP) | ||
| Bar Thickness | 4-6mm (steel) | DIN 24537 |
| 5-8mm (aluminum/FRP) | ||
| Surface Treatment | • Hot-dip galvanized (80μm) | ISO 1461 / ASTM A967 |
| • Anodized (AA-M12C22A41) | ||
| • Grit coating | ||
| Interlock Strength | 500kg tensile force per connection point | MIL-STD-810G |
| Anti-Slip Performance | Serrated (3mm depth) / Grit-coated (0.8μ) | OSHA 1910.23 |
| Temperature Range | -40°C to +300°C (steel) | ASME B31.3 |
| -60°C to +150°C (FRP) | ||
| Weight | 12-18kg/m² (steel) | N/A |
| 4-8kg/m² (aluminum/FRP) | ||
| Reusability | 100+ assembly cycles without wear | SGS Test Report #2023-ICG |
Additional Notes:

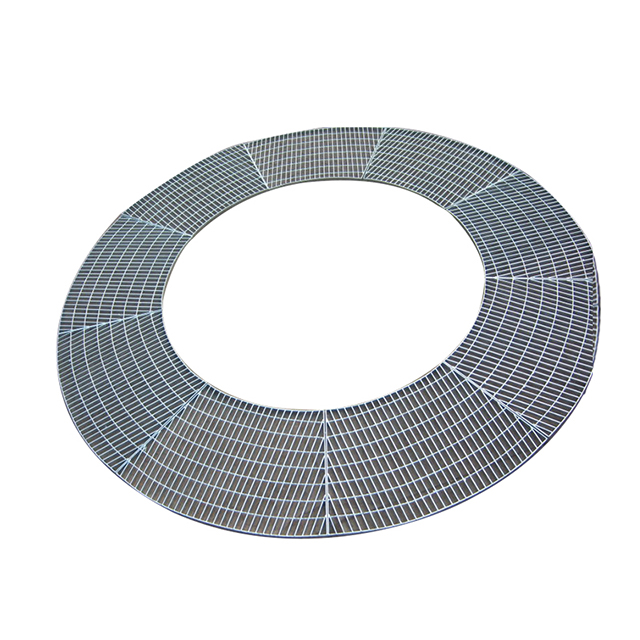

Custom Configurations: Circular/arched panels (卤3mm tolerance)
Accessories: Available with ramped edges, kickplates, and anti-vibration pads
Testing: Third-party certified for dynamic load testing (2 million cycles at 2 tons)
Technical Keywords for Engineers:
interlocking grating load capacity chart
military-spec modular grating parameters
galvanized vs aluminum snap-lock grating specs
high-cycle reusable grating technical data
OSHA-compliant temporary flooring standards
>> Product Uses
1. Construction & Temporary Work Platforms
Ideal for bridge maintenance and building facades, our interlocking grating installs 10x faster than welded systems. The 5-ton/m² capacity supports heavy equipment while remaining fully reusable across multiple projects.
Keywords: construction access grating, modular work platforms, temporary bridge flooring
2. Live Events & Stage Design
Used for concert stages and exhibition booths, the tool-free assembly allows rapid setup/teardown. Aluminum options (8kg/m²) reduce rigging loads while maintaining 3-ton/m² stability.
Keywords: event staging grating, temporary stage flooring, exhibition platform grating
3. Military & Emergency Deployment
Meets MIL-STD-810G for mobile bridging. Panels connect in <2 mins each to create 50m+ emergency walkways for disaster response or field operations.
Keywords: military bridging grating, rapid-deployment flooring, emergency access walkways
4. Oil & Gas Turnarounds
Galvanized steel panels withstand refinery environments. The spark-free aluminum version is safe for Class I Div. 1 areas during plant maintenance.
Keywords: refinery maintenance grating, non-sparking work platforms, plant turnaround flooring
5. Water Treatment Plants
FRP grating resists H₂S corrosion in sedimentation tanks. Interlocking design allows selective panel removal for filter maintenance without full shutdowns.
Keywords: wastewater walkway grating, chemical-resistant modular flooring, plant access systems
6. Aviation & Shipyards
Lightweight aluminum (6kg/m²) reduces deck loads for aircraft maintenance docks. Removable panels enable easy access to hull/service areas.
Keywords: hangar floor grating, shipyard access platforms, aircraft service walkways
>> Product Operate Guide
Surface Preparation
Ensure a level, debris-free base. Uneven surfaces (>3mm gap) may require adjustable pedestals.
Panel Connection
Align male/female joints at 30° angle, then press down until fully seated (audible click confirms lock).
Load Distribution
Place heavy loads over support bars, not joints. Max 5 tons/m² (steel) or 3 tons/m² (aluminum/FRP).
Safety Check
Verify all connections are gap-free. Add non-slip tape if using smooth-surface grating in wet areas.
Disassembly
Lift one corner with flat pry bar (included). Never force panels sideways to prevent joint damage.
Keywords: interlocking grating installation, modular flooring safety, temporary walkway setup
>> Product Video
>> FAQ
1. How quickly can it be installed?
A 10m² area takes under 30 minutes with 2 workers – no tools required. Panels click-lock securely with audible confirmation.
2. What’s the maximum span without supports?
1.5m for steel (5 tons/m²) or 1m for aluminum/FRP (3 tons/m²). Add cross-braces for longer spans.
3. Is it safe for wet/oily environments?
Yes. Serrated surfaces (0.78μ friction) and gap-free joints meet OSHA standards. Optional grit coating available.
4. Can damaged panels be replaced individually?
Absolutely. Simply unlock adjacent panels – no system dismantling required. We provide single-panel replacements.
5. How many reuses are possible?
100+ cycles tested (SGS-certified). Joints retain 95% strength after 5 years of heavy use.
Keywords: interlock grating installation, modular walkway span, OSHA-compliant temporary flooring
