Corrosion-resistant FRP Grating for Industrial

>> Product Introduction

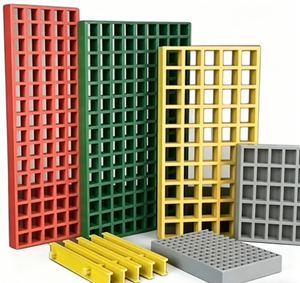

Fiberglass (FRP) grating is a lightweight, corrosion-resistant alternative to metal grating, made from fiberglass-reinforced polymer. It offers high strength-to-weight ratio and is ideal for harsh environments where traditional materials fail.This molded fiberglass grating is widely used in industrial walkways, platform flooring, drainage covers, stair treads and offshore facilities. It has become an ideal replacement for metal materials in harsh chemical and humid environments.

Key Features:

• Non-conductive & non-sparking – Safe for electrical/explosive areas

• Chemical-resistant – Withstands acids, alkalis, and solvents

• Low maintenance – No rust or corrosion, even in saltwater

• Slip-resistant surfaces – Molded grit or serrated options

• Applications: Chemical plants, offshore platforms, walkways, and food processing facilities.

Keywords: FRP fiberglass grating, non-metallic flooring, chemical-resistant walkways

Material & Performance

 Fiberglass grating adopts high-quality continuous fiberglass yarn as reinforcement and high-density resin as bonding material. The integrated molding structure ensures overall impact resistance and uniform load distribution.

 It will not rust, oxidize or degrade under long-term exposure to sewage, chemical liquid, salt spray and ultraviolet rays. Excellent insulating performance makes it perfect for power plants, substations and electrical workshops.

>> Product Advantage

1. Superior Corrosion Resistance

Engineered to withstand acids, alkalis, and solvents (pH 1-14), our FRP grating outperforms steel in chemical plants. Zero rust even after 10+ years in saltwater/marine environments.

Keywords: chemical-resistant FRP grating, non-corrosive walkways, acid-proof flooring

2. Non-Conductive & Non-Sparking

Dielectric strength >10kV/mm makes it ideal for electrical substations and Class I Div. 1 hazardous areas. Eliminates arc flash/static risks.

Keywords: non-conductive grating, explosion-proof flooring, electrical safety platforms

3. Lightweight Yet Durable

1/4 the weight of steel (8-12kg/m²) with 1.5-4 ton/m² load capacity. Reduces structural support costs by 30% versus metal alternatives.

Keywords: lightweight fiberglass grating, high-strength FRP flooring, low-load structural platforms

4. Low Maintenance & Long Lifespan

No painting or coatings needed – resistant to UV, mold, and weathering. 20-year lifespan in harsh conditions with simple water cleaning.

Keywords: maintenance-free grating, long-life FRP walkways, UV-resistant fiberglass

5. Customizable Safety Features

Choose from:

Grit-coated surfaces (0.85+ friction coefficient)

Closed-mesh designs (for small tool retention)

Color-coding (yellow for hazard areas)

Keywords: anti-slip FRP grating, OSHA-compliant fiberglass, safety flooring options

Technical Trust Builders:

Third-party tested – ASTM E84 Class 1 fire rating

Chemical resistance charts available for 150+ compounds

Custom fabrication – CAD/CAM cutting (±2mm tolerance)

Long-Tail Keywords:

FRP grating for sulfuric acid plants

lightweight non-sparking work platforms

fiberglass trench covers for wastewater

UV-stable chemical plant walkways

non-conductive grating for substations

>> Technical Parameters

Additional Notes:

Custom Fabrication: CNC routing for complex shapes (±2mm tolerance)

Accessories: Available with ramped edges, drain inserts, and U-channel supports

Testing Reports: Third-party chemical resistance and load testing (SGS) available

Technical Keywords for Engineers:

FRP grating load capacity chart

chemical resistance fiberglass grating data

non-conductive flooring specifications

ASTM E84 fire-rated grating

heavy-duty FRP walkway parameters

>> Product Uses

1. Chemical Processing Plants

Ideal for acid wash stations and reactor walkways, our FRP grating resists pH 1-14 chemicals without corrosion. The non-sparking surface ensures safety in explosive zones.

Keywords: chemical plant flooring, acid-resistant walkways, explosion-proof grating

2. Wastewater Treatment Facilities

Withstands H₂S gas and bio-corrosion in clarifiers and aeration tanks. Molded grit surfaces (0.85 COF) prevent slips in wet conditions.

Keywords: wastewater grating, sewage plant walkways, non-corrosive platforms

3. Electrical Substations

Non-conductive properties (10kV/mm) eliminate arc flash risks around transformers. Lightweight (8kg/m²) simplifies installation in tight spaces.

Keywords: electrical safety grating, utility access flooring, static-free platforms

4. Marine & Offshore Platforms

Saltwater-proof with zero rust, perfect for ship decks and oil rig walkways. UV-stabilized resin prevents sun degradation.

Keywords: marine FRP grating, offshore walkways, saltwater-resistant flooring

5. Food & Beverage Facilities

FDA-compliant resin won’t contaminate products. Smooth surfaces allow easy washdowns with steam/chemicals.

Keywords: food-grade grating, sanitary walkways, hygienic flooring

6. Mining & Minerals Processing

Resists abrasion and sulfuric acid in leaching plants. Closed-mesh designs prevent tool drops into equipment.

Keywords: mining platform grating, mineral processing walkways, heavy-duty FRP

Custom Service

We support customized fiberglass grating according to actual project demands: custom thickness, opening size, panel size, color, fire rating and anti-slip grade. OEM and wholesale supply are available for global project cooperation

>> Product Operate Guide

• Handling & Storage

Store panels flat on wooden pallets to prevent warping. Use nylon slings for lifting – avoid metal hooks that can damage edges.

• Installation

Secure with FRP-compatible fasteners (stainless steel or fiberglass bolts). Allow 3-5mm gaps between panels for thermal expansion.

• Load Management

Distribute weight evenly across bars – never exceed 4 tons/m². Avoid point loads from sharp objects.

• Cleaning

Use pH-neutral cleaners and soft brushes. For grease, apply mild degreasers (<60°C). Never use hydrochloric acid!

• Inspection

Check annually for surface wear or UV degradation. Replace if grit texture wears below 0.6 friction coefficient.

Keywords: FRP grating installation, fiberglass flooring care, chemical-resistant walkway tips

>> Product Video

>> FAQ

1. How does FRP compare to steel grating?

FRP is 1/4 the weight of steel, rust-proof, and non-conductive, but has lower load capacity (max 4 tons/m²). Ideal for corrosive/electrical environments.

2. Is it slippery when wet?

No. Molded grit surfaces achieve 0.85+ friction coefficient, exceeding OSHA standards. Optional serrated patterns available for oily areas.

3. Can it withstand high temperatures?

Standard FRP handles 120°C continuously (150°C short-term). For higher temps, phenolic resin options resist 180°C.

4. How do I clean chemical spills?

Rinse immediately with water. For acids/alkalis, use pH-neutral cleaners. Avoid abrasives that damage the resin surface.

5. Is customization available?

Yes. We provide CNC-cut panels (±2mm), custom colors (RAL codes), and closed-mesh designs for small part containment.

Keywords: FRP vs steel grating, non-slip fiberglass, chemical-resistant flooring
