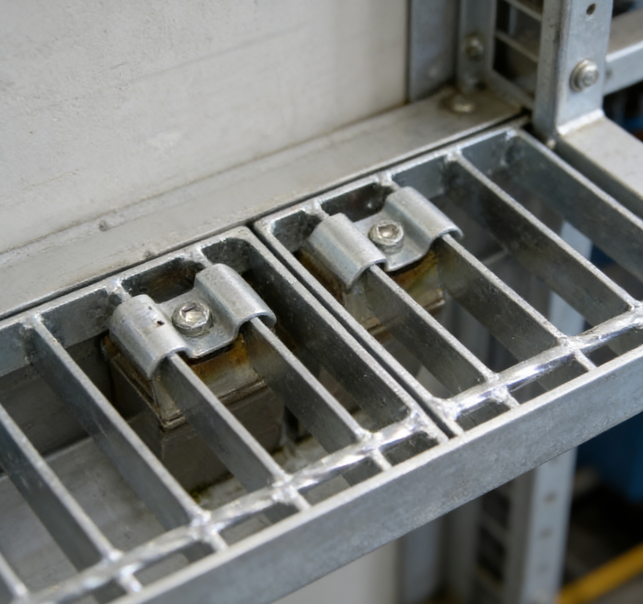

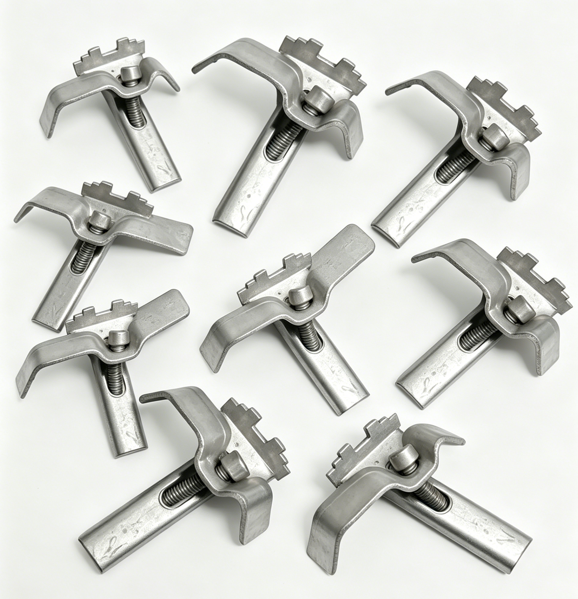

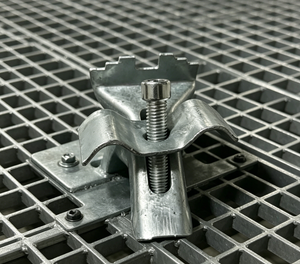

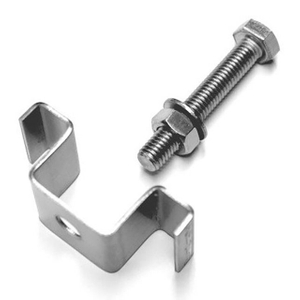

Steel Grating Clamps (also known as G-Clips/Grating Fasteners) are high-strength fixing components designed to securely fasten steel bar grating panels to supporting structures without welding. Manufactured from carbon steel or stainless steel with hot-dip galvanized finish, these clamps ensure long-lasting, anti-corrosion performance for industrial environments. Each set includes a top clip, saddle plate, and bolt, providing a reliable, easy-to-install solution for grating walkways, platforms, and trench covers.
No Welding Required: Eliminates on-site welding work, saving installation time and reducing safety risks.
High Corrosion Resistance: Hot-dip galvanized or stainless steel construction for excellent anti-rust performance in outdoor, humid, or chemical-exposed areas.
Strong Holding Power: Precision-stamped clip design ensures a tight grip on grating panels, preventing movement under heavy loads or vibration.
Easy Installation & Maintenance: Simple bolt-tightening installation, and clamps can be easily removed for grating cleaning or replacement.
Multiple Types Available: Type A, B, and C clamps to fit different grating thicknesses and support structures.
Item | Specification |
|---|---|
Product Name | Steel Grating Clamp / Grating Fastener / G-Clip |
Material | Carbon Steel, Stainless Steel (304/316 optional) |
Surface Treatment | Hot Dipped Galvanized, Electro Galvanized, Stainless Steel Polished |
Standard Types | Type A (Top Clip), Type B (Side Clip), Type C (Base Clip) |
Suitable Grating Thickness | 20mm-50mm (Customizable) |
Bolt Size | M8 / M10 / M12 (Optional) |
Packing | Carton + Pallet, or Customized |
Industrial platforms, walkways, and stair treads
Trench covers and drainage grating systems
Petrochemical plants, power stations, and wastewater treatment facilities
Marine docks, offshore platforms, and outdoor industrial projects
Commercial buildings, car parks, and safety grating installations
Installation Instructions
Place the grating panel on the supporting structure and align it correctly.
Position the bottom saddle plate under the supporting bar of the grating.
Place the top clip over the grating bar, aligning with the saddle plate.
Insert the bolt through the clip and saddle plate, then tighten with a wrench until secure.
Check the tightness of all clamps after installation to ensure stability.
FAQ :
It is a special fastener to fix steel grating panels on supporting frames. It can firmly lock the grating without welding, widely used for walkways, platforms, trench covers and stair treads.
We mainly supply Type A, Type B and Type C. Different types fit different installation positions and grating structures.
Standard material is carbon steel with hot dipped galvanized finish. We also provide 304/316 stainless steel and electro galvanized options for anti-rust demands.
