Fixing Approaches of Steel Grating: Optional Welding or Clamp Fastening
Steel grating is widely applied in industrial platforms, walkways, drainage covers, stair treads, trestles and other structural scenarios. Its bearing capacity, stability and service life depend not only on material specifications and surface treatment, but also largely on a reasonable and reliable fixing system. In actual engineering and installation, two mainstream fixing approaches are available for steel grating: welding fastening and clamp fastening. Each method has its own applicable conditions, advantages, construction details and maintenance characteristics, which can be selected flexibly according to project requirements, environmental conditions and later operation demands.
1. General Requirements for Steel Grating Installation
Before determining the specific fixing method, basic installation principles should be followed to ensure overall structural safety. Steel grating must be fixed firmly to avoid displacement, loosening, deformation or abnormal noise under dynamic load, pedestrian flow or mechanical vibration. The fixing points shall be arranged evenly, usually at the supporting beams, steel frames or side panels of the grating panels. Sufficient contact area and connection strength shall be reserved between the grating and the supporting structure.
In most standard specifications, both welding and clamping are recognized as qualified fixing methods. The selection is determined by factors such as project durability, disassembly needs, construction period, cost budget, on-site welding conditions and later maintenance plans.
2. Welding Fastening: Permanent and High-Strength Fixing
Welding is the most traditional and widely used permanent fixing method for steel grating. It forms an integrated connection between the bearing bars of the grating and the supporting steel structure through high-temperature fusion, with outstanding stability and strength.
2.1 Application Scope
Welding is recommended for projects requiring long-term fixed use, no frequent disassembly, and high structural integrity, such as fixed production platforms, oil refinery walkways, mining infrastructure, permanent drainage covers and outdoor tr estles. It is also the preferred solution in occasions with heavy load, high vibration intensity and severe wind or shock loads.
2.2 Main Advantages
High connection strength and good integrity, not easy to loosen or fall off.
Low material cost, no additional fasteners required in most cases.
Strong resistance to shear, torsion and lateral displacement.
Suitable for harsh environments where fasteners may be corroded or damaged.
2.3 Construction Notes
The welding position shall be cleaned of oil, dust, rust and coating residues before welding.
Welding seams shall be full and uniform, avoiding virtual welding, missing welding or cracks.
After welding, welding spots shall be polished and repaired with anti-corrosion coating, such as hot-dip galvanized repair paint, to restore corrosion resistance.
Construction is affected by on-site fire control regulations and requires professional welders.
3. Clamp Fastening: Removable and Flexible Installation

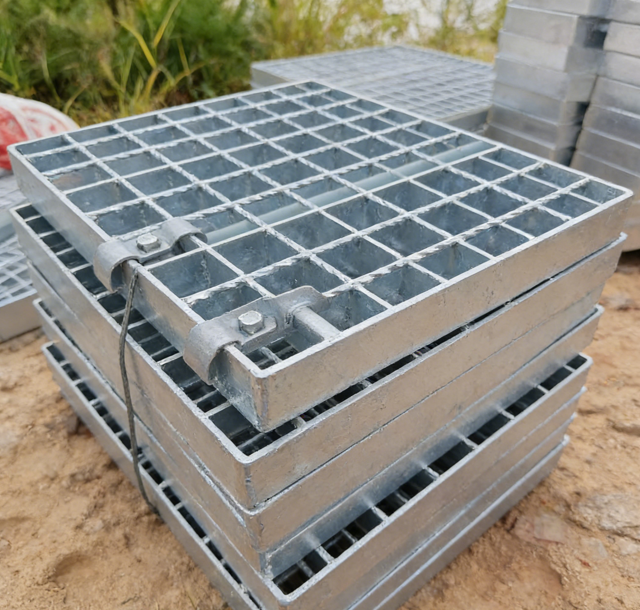

Also known as installation clamp fastening, this method fixes steel grating to the supporting structure by special grating clamps, bolts and nuts without any welding operation. It is a non-destructive, detachable and reusable installation method.
3.1 Application Scope
Clamp fastening is suitable for scenarios requiring later disassembly, maintenance, replacement or expansion, such as temporary platforms, underground pipe gallery covers, equipment maintenance channels, indoor industrial floors and projects with strict restrictions on on-site welding. It is also widely used in projects requiring complete preservation of the original hot-dip galvanized coating.
3.2 Main Advantages
No welding needed, fast construction speed and low labor requirement.
Fully detachable, convenient for later inspection, maintenance, pipeline modification and grating replacement.
Does not damage the original anti-corrosion coating of steel grating, greatly reducing later corrosion risk.
Flexible adjustment allowed for installation errors, strong adaptability to structural deformation.
No fire risk, applicable to explosion-proof, fire-prohibited and closed construction areas.
3.3 Construction Notes
Select special steel grating clamps matching the bearing bar thickness and supporting beam specifications.
Ensure the clamps are tightly locked to prevent loosening caused by vibration.
For high-vibration occasions, anti-loosening gaskets or locking nuts can be equipped.
Regular inspection shall be carried out during use to retighten slightly loose bolts.
4. Selection Principles of Welding and Clamp Fastening
In practical engineering, the selection between the two fixing approaches can be determined by the following core principles:
Choose welding fastening for permanent structures, heavy loads, high vibration, long service life and low maintenance frequency.
Choose clamp fastening for removable structures, fire-prohibited areas, frequent maintenance demands, strict coating protection and temporary projects.
In some composite structures, the two methods can be used in combination: partial welding for key stress points, and clamping for auxiliary positions, taking into account both strength and flexibility.
5. Conclusion
Fixing approaches directly affect the safety, durability and maintainability of steel grating. Welding provides permanent, high-strength and economical fixing for long-term service structures, while installation clamp fastening provides non-destructive, detachable and highly flexible installation for adjustable and maintainable projects.
Reasonable selection of welding or clamp fastening according to design requirements, environmental characteristics and use functions can give full play to the performance of steel grating, reduce later operation and maintenance costs, and ensure safe and stable application in various industrial and construction fields.
