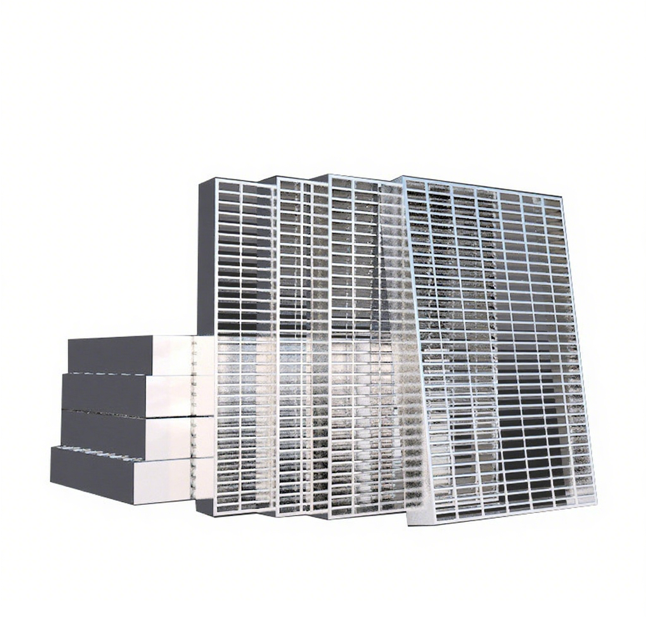

High-Strength Steel Grating for Heavy-Duty Industrial Applications

This high‑strength steel grating is a heavy‑duty structural panel for industrial, infrastructure, commercial & heavy‑load scenarios. Made from carbon steel, galvanized steel or stainless steel, it uses precision open‑grid construction with robust load bars and reinforced cross bars. Available in welded, press‑locked, heavy‑duty types; standard sizes, bar spacing and surface treatments can be customized for platforms, walkways, trenches and vehicle‑bearing areas.

Availability:

Quantity:



Inquire Add to Basket

Steel Grating Walkway Steel Grating Platform Steel Grating Factory

Product Description

Heavy-duty steel grating is engineered with high-strength raw materials, featuring sturdy welded structure and excellent load-bearing performance. Available in multiple steel grades, standard sizes and surface treatments,In the demanding landscape of heavy-duty industrial settings, where equipment must withstand relentless pressure, extreme weight, and harsh environmental conditions, the reliability and performance of structural components are non-negotiable. Our high-strength steel grating stands as the ultimate solution, engineered to meet and exceed the rigorous standards of industrial infrastructure, ensuring long-term durability, safety, and operational efficiency for the most challenging applications worldwide.

Key Features ：

Extreme load capacity: Uniform load from 30kN/m² up to 200kN+ for heavy machinery & vehicles. Structural rigidity: Stable under long‑term heavy use, low warpage & deformation. Safety performance: High slip resistance, efficient drainage & ventilation. Durability: Premium steel + protective surface treatment for long service life. Flexibility: Custom sizes, spacing, framing & surface finishes available.nmatched Structural Integrity: Built to Withstand the Toughest Challenges

Item	Standard Parameters
Material Grade	Q235B, Q345B, 304, 316L
Bearing Bar Size	25×3 ~ 100×10mm; I‑bar optional
Bearing Bar Pitch	30mm / 40mm / 60mm (c/c)
Cross Bar Pitch	50mm / 100mm (c/c)
Panel Size	Custom L×W per request
Surface Treatment	Hot‑dip galvanized, painted, untreated, polished
Process Type	Welded, press‑locked, heavy‑duty reinforced
Load Rating	30–200+ kN/m²

Carbon steel: Cost‑effective, high strength, general industrial use.

Hot‑dipped galvanized steel: Enhanced corrosion resistance for outdoor & humid environments.

Stainless steel (304/316L): For chemical, marine & highly corrosive sites.

Common Applications： Industrial platforms & walkways Heavy machinery & equipment floors Bridge walkways & dock decks Warehouse & logistics flooring Trench covers & drainage grids Power, chemical, port & marine facilities

Crafted from premium-grade carbon steel, alloy steel, or stainless steel (options including Q235B, Q345B, 304, 316L, etc.), our steel grating is manufactured through a precision welding process that fuses cross bars and load bars into a singular, robust structure. The load-bearing bars, typically arranged at standardized intervals (commonly 30mm, 40mm, or 60mm center-to-center), are designed to channel heavy loads evenly across the entire surface, eliminating weak points and preventing deformation under extreme stress.

Each weld is executed with meticulous accuracy, utilizing advanced techniques such as pressure welding, electric resistance welding, or fusion bonding, which create bonds far stronger than conventional methods. This results in a grating with exceptional load-bearing capacity—ranging from 30kN/m² to over 200kN/m², depending on the specifications—making it ideal for use in heavy machinery zones, industrial platforms, bridge walkways, and storage facilities where maximum weight resistance is critical.

FAQ

Q1: What load capacity can I choose?

A: Standard uniform load 30–200+ kN/m². Provide span, support condition & load type for accurate selection.

Q2: What surface treatments are available?

A: Hot‑dip galvanizing (most popular), painting, untreated black surface, stainless steel polishing.

Q3: Can you make non‑standard sizes?

A: Yes. We customize panel dimensions, bar spacing, frame & openings per drawing.

Q4: What’s the delivery time?

A: Standard models 7–15 days; custom products 15–25 days (inquiry for exact lead time).

Q5: What industries use this grating?

A: Oil & gas, power plants, chemicals, mining, ports, shipyards, municipal engineering & heavy industry.
