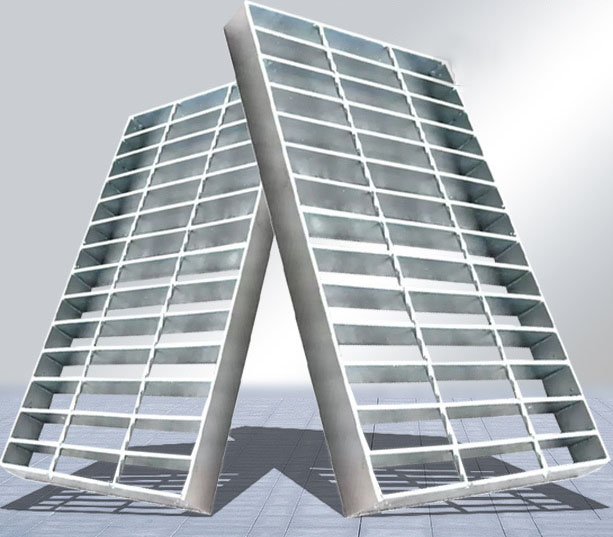

Steel welded bar grating stands as a cornerstone in industrial, commercial, and infrastructure projects, celebrated for its exceptional strength, durability, and versatility. Engineered through precise welding of load-bearing bars and cross bars, this grating solution delivers reliable performance in demanding environments—from heavy-duty industrial floors to pedestrian walkways. Below is a comprehensive overview of our steel welded bar grating offerings, including plain and serrated variants, available sizes, finishes, and key applications to help you select the ideal solution for your project.
Core Advantages of Steel Welded Bar Grating
Before delving into specific variants, it’s essential to highlight the inherent benefits that make steel welded bar grating a preferred choice across industries:
Superior Structural Strength: The welded construction ensures a rigid, one-piece structure that efficiently distributes loads, supporting heavy weights without deformation. This makes it suitable for industrial zones, loading docks, and heavy machinery platforms.
Exceptional Durability: Crafted from high-quality carbon steel or stainless steel, our welded grating resists corrosion, wear, and impact, ensuring a long service life even in harsh conditions (e.g., outdoor exposure, chemical environments).
Enhanced Safety: Both plain and serrated surfaces are designed to minimize slip risks, with serrated grating offering extra traction in wet, oily, or icy environments. The open-grid design also prevents water, debris, and chemicals from accumulating, reducing hazard risks.
Easy Installation & Maintenance: Lightweight yet robust, the grating is easy to handle and install with standard fasteners. Its open structure simplifies cleaning and inspection, lowering long-term maintenance costs.
Versatile Customization: Available in a wide range of sizes, finishes, and configurations, it can be tailored to meet the unique requirements of any project。
Plain vs. Serrated Steel Welded Bar Grating: Key Differences
We offer two primary surface variants—plain and serrated—each optimized for specific environments and applications. Understanding their unique characteristics will help you make the right selection.

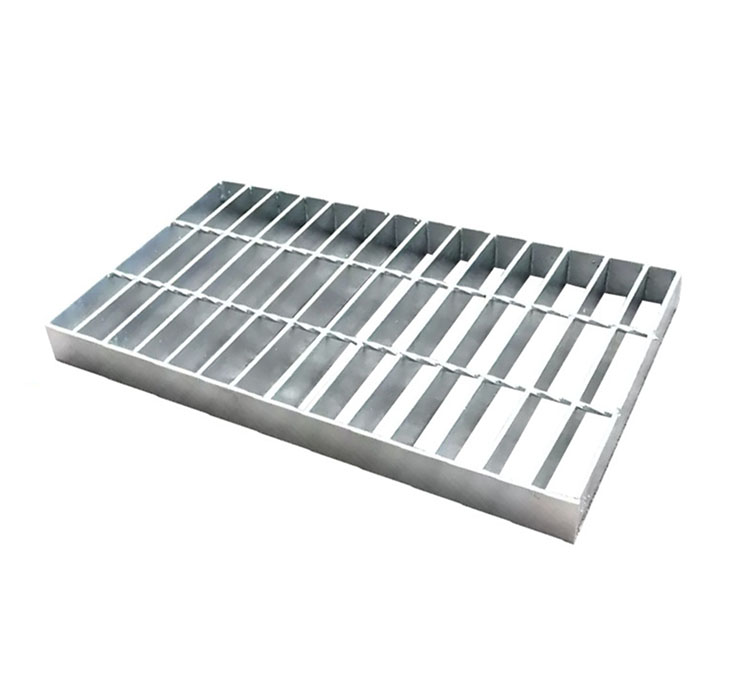

Plain Steel Welded Bar Grating
Plain steel welded bar grating features a smooth surface on the load-bearing bars, making it an excellent choice for applications where traction is sufficient and a sleek, low-friction surface is preferred.
Ideal Applications: Indoor platforms, mezzanines, stair treads in dry environments, decorative screens, and areas with light foot traffic. It’s also widely used in industrial settings where material handling (e.g., sliding packages) is required.
Key Benefits: Easy to clean, low maintenance, and suitable for both functional and aesthetic purposes. The smooth surface minimizes wear on equipment or materials that come into contact with the grating.
Serrated Steel Welded Bar Grating
Serrated steel welded bar grating is engineered with a textured, serrated surface on the load-bearing bars, created by cutting or pressing small grooves into the steel. This texture significantly enhances traction, making it the go-to option for high-risk slip environments.
Ideal Applications: Outdoor walkways, ramps, stair treads, loading docks, oil refineries, chemical plants, and any area exposed to rain, snow, oil, or grease. It’s also commonly used in marine environments where moisture resistance and traction are critical.
Key Benefits: Maximum slip resistance, improved safety in harsh conditions, and maintains structural integrity even with heavy use. The serrated surface does not compromise the grating’s strength, ensuring long-term reliability.
Various Sizes: Tailored to Your Project Needs
Our steel welded bar grating is available in a comprehensive range of sizes to accommodate diverse project requirements. We offer both standard and custom sizes, with key dimensions including:
Load-Bearing Bar Sizes: Thickness ranges from 3mm to 12mm, and height from 20mm to 100mm. Common sizes include 5mm×30mm, 6mm×40mm, and 8mm×50mm, with custom profiles available for specialized load requirements.
Cross Bar Sizes: Typically 3mm×10mm, 4mm×12mm, or 5mm×15mm, designed to provide stable support while maintaining the open-grid structure. Cross bar spacing can be adjusted based on load and safety needs.
Panel Sizes: Standard panel widths range from 1m to 2m, and lengths from 2m to 6m. Custom panel sizes (up to 3m×10m) are available for large-scale projects, reducing the number of joints and simplifying installation.
Mesh Spacing: Common spacing options for cross bars include 30mm, 50mm, 100mm, and 150mm. Closer spacing (30mm-50mm) is ideal for pedestrian areas or small debris containment, while wider spacing (100mm+) is suitable for industrial platforms and drainage applications.
Our team can assist in calculating the optimal size based on your project’s load capacity, span requirements, and environmental conditions.
Finishes: Enhancing Protection & Aesthetics
The right finish not only extends the lifespan of steel welded bar grating but also enhances its appearance and resistance to specific environmental factors. We offer four primary finishes to suit different applications:
1. Hot-Dip Galvanized Finish
The most popular finish, hot-dip galvanizing involves coating the grating in a layer of zinc through a hot-dip process. This finish provides exceptional corrosion resistance, making it ideal for outdoor, marine, or industrial environments exposed to moisture, chemicals, or salt.
Benefits: Long-lasting protection (up to 20 years in mild environments), low maintenance, and cost-effective. The zinc coating acts as a sacrificial layer, preventing rust and corrosion of the underlying steel.
2. Painted Finish
Available in a range of colors (e.g., red, blue, gray, black), painted finish is applied via electrostatic spraying for a uniform, smooth coat. It’s ideal for indoor applications or areas where aesthetics are a priority, such as commercial buildings, stadiums, or decorative screens.
Benefits: Customizable aesthetics, basic corrosion protection for dry environments, and easy touch-up if damaged.
3. Stainless Steel Finish
For extreme corrosion resistance, we offer grating made from 304 or 316 stainless steel. The natural stainless steel finish requires no additional coating, providing superior resistance to chemicals, saltwater, and high humidity.
Benefits: Exceptional durability in harsh environments (e.g., chemical plants, marine facilities, food processing plants), hygienic (easy to clean), and long service life with minimal maintenance.
4. Bare Steel Finish
Bare steel grating is available for indoor applications with minimal exposure to moisture or corrosion. It’s often used as a base for custom painting or coating on-site.
Benefits: Cost-effective, lightweight, and flexible for on-site finishing.
Key Applications Across Industries
Steel welded bar grating’s versatility makes it suitable for a wide range of industries and applications, including:
Industrial & Manufacturing: Platforms, walkways, stair treads, machine guards, and drainage grates in factories, refineries, and power plants.
Infrastructure & Construction: Bridge walkways, tunnel ventilation grates, road drainage, and pedestrian overpasses.
Commercial & Public Spaces: Shopping mall mezzanines, stadium seating platforms, park walkways, and decorative screens.
Marine & Offshore: Ship decks, offshore platform walkways, and port facilities (serrated, hot-dip galvanized, or stainless steel variants).
Food & Pharmaceutical: Hygienic platforms and drainage grates (stainless steel finish for easy cleaning and corrosion resistance).
Why Choose Our Steel Welded Bar Grating?
We prioritize quality, reliability, and customer satisfaction. Our steel welded bar grating is manufactured using high-grade steel and advanced welding technology, ensuring consistent performance and durability. We offer:
A full range of plain and serrated variants, sizes, and finishes to meet any project need.
Customization options for unique dimensions, load requirements, and aesthetic preferences.
Strict quality control processes, including load testing and corrosion resistance verification.
Expert technical support to help you select the right grating for your application.
Timely delivery and professional installation guidance to ensure a seamless project experience.
Whether you need a durable solution for an industrial platform, a safe walkway for a public space, or a corrosion-resistant grating for a marine environment, our steel welded bar grating delivers the performance and reliability you can trust. Contact us today to discuss your project requirements and receive a personalized quote.
