Metal gratings are versatile fabricated metal products characterized by parallel or intersecting bars with regular spacing, renowned for their exceptional strength-to-weight ratio, durability, and adaptability to diverse configurations. They play an indispensable role in industrial, commercial, architectural, and municipal applications, serving as walkways, platforms, stair treads, trench covers, ceilings, and sun shades. The classification of metal gratings is primarily based on manufacturing processes, materials, surface designs, and structural forms, each type boasting unique characteristics tailored to specific application needs.

The manufacturing process is the most common criterion for classifying metal gratings, as it directly determines the structure, strength, and appearance of the product. The maintypes under this category include welded metal gratings, press-locked metal gratings, swage-locked metal gratings, riveted metal gratings, and expanded metal gratings.

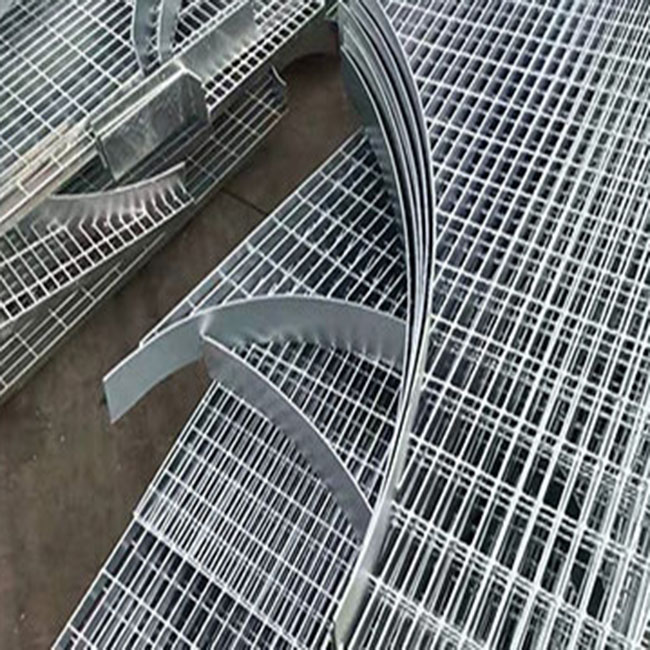

Welded metal gratings, also known as steel gratings, are the most popular and versatile type in industrial applications. They are fabricated by resistance-welding parallel bearing bars with perpendicular cross bars using precise heat and pressure, forming a rugged one-piece panel with rigid yet smooth surfaces. Both plain and serrated surfaces are available, with serrated versions offering enhanced slip resistance for wet or hazardous environments.

Commonly made from carbon steel or stainless steel, welded gratings are widely used in walkways, safety barriers, drainage covers, industrial platforms, ventilation grates, and stair treads. They feature standardized specifications, such as 19-W-4 or 15-W-2, where "W" denotes welded, the first number represents the bearing bar spacing, and the second number indicates the cross bar spacing. Their simplicity in fabrication and high structural stability make them a cost-effective choice for most general industrial needs.

Unlike welded gratings, press-locked metal gratings rely on enormous hydraulic pressure to fuse slotted bearing bars and cross bars together, eliminating the need for welding. The cross bars are forced into notched bearing bars to achieve a permanent lock, resulting in a smooth, seamless surface with excellent aesthetic appeal. This type is available in plain and serrated surfaces and supports a wide range of bar spacings, making it highly versatile.

Press-locked gratings are ideal for architectural and decorative applications, such as ceilings, building facades, ornamental grilles, and high-traffic public pedestrian areas. They can be manufactured from carbon steel, aluminum, or stainless steel and are commonly used in factories, civil buildings, and commercial structures for their clean appearance and structural integrity. Standard specifications include 19-P-4 and 15-P-2, with "P" standing for press-locked.

Swage-locked metal gratings are fabricated by inserting cross bars into pre-punched holes in bearing bars, then using hydraulic pressure to deform the cross bars and lock them in place permanently. This process creates a precise, strong connection that is particularly suitable for aluminum, stainless steel, and close-mesh gratings. They offer similar structural stability to press-locked gratings but with a more compact design, making them ideal for applications requiring tight spacing and high precision.

Common uses include architectural screens, lightweight platforms, and areas where corrosion resistance is a priority, such as marine or chemical environments. Their smooth surface and uniform spacing also make them suitable for decorative purposes in modern buildings.

Riveted metal gratings are one of the oldest and most robust types, manufactured by riveting bearing bars and bent connecting bars at their contact points. This design provides exceptional strength and stiffness, making them ideal for heavy-duty applications involving impact loads, repetitive traffic, or turning vehicular loads, such as plant floors, mezzanines, highways, and bridges. The flush surface of riveted gratings also ensures excellent walking comfort.

Available in steel, aluminum, and stainless steel, riveted gratings are valued for their durability and long service life, though they are less common today due to the higher cost and complexity of fabrication compared to welded or press-locked types.

Expanded metal gratings are produced by slitting and stretching metal sheets to form a mesh-like pattern, typically with diamond-shaped openings. Unlike other types, they do not require separate bars or welding; instead, the entire grating is made from a single piece of metal, resulting in a lightweight yet strong structure with excellent ventilation and drainage properties.

They are available in various thicknesses and opening sizes, making them suitable for lightweight walkways, safety screens, sun shades, and decorative facades. Their non-slip surface and resistance to deformation also make them a popular choice for outdoor and temporary applications.

Metal gratings are also classified based on the materials used, which significantly influence their corrosion resistance, weight, strength, and aesthetic appeal. The main material-based types include carbon steel gratings, stainless steel gratings, aluminum gratings, and specialty alloy gratings.

Carbon steel is the most common material for metal gratings due to its high strength, low cost, and ease of fabrication. Most welded, press-locked, and riveted gratings are made from carbon steel, which is often treated with hot-dip galvanization or painting to enhance corrosion resistance. Hot-dip galvanization, in particular, provides a protective zinc layer that extends the service life, with standard zinc layer thicknesses of ≥65μm for general industrial environments and ≥85μm for high-corrosion areas.

Carbon steel gratings are widely used in industrial settings, such as factories, power plants, and petrochemical facilities, for walkways, platforms, and trench covers. They are available in both plain and serrated surfaces and can be customized to meet heavy-duty load requirements.

Stainless steel gratings are fabricated from 300-series stainless steel (e.g., 304, 316L), which offers exceptional corrosion resistance, hygiene, and durability. They are ideal for environments with high humidity, chemical exposure, or strict hygiene requirements, such as food processing plants, pharmaceutical facilities, marine applications, and coastal areas. Stainless steel gratings can be welded, press-locked, or swage-locked, maintaining their strength and appearance even in harsh conditions.

While more expensive than carbon steel gratings, their low maintenance requirements and long service life make them cost-effective in the long run. They are commonly used as stair treads, platform floors, and drainage covers in corrosive environments.

Aluminum gratings are lightweight, corrosion-resistant, and non-magnetic, making them ideal for applications where weight is a concern, such as architectural facades, outdoor sun shades, and lightweight platforms. They are fabricated from 6000-series aluminum alloys, which offer a good balance of strength and weight, and can be anodized to enhance their aesthetic appeal and corrosion resistance.

Aluminum gratings are available in various types, including press-locked, swage-locked, and expanded gratings, and are widely used in commercial buildings, residential complexes, and outdoor infrastructure. Their lightweight nature also simplifies installation, reducing labor costs compared to steel gratings.

For specialized applications, metal gratings can be made from specialty alloys such as brass, titanium, or galvanized steel (a coated carbon steel variant). Galvanized steel gratings, as mentioned earlier, are carbon steel gratings treated with hot-dip galvanization to improve corrosion resistance, combining the strength of carbon steel with the protection of zinc. Brass and titanium gratings are used in high-end or extreme environments, such as aerospace, marine, and chemical processing, where exceptional corrosion resistance and durability are required, though they are more costly than other types.

In addition to manufacturing processes and materials, metal gratings can be classified by surface design and structural purpose, further refining their application scope.

Most metal gratings are available in two surface types: plain and serrated. Plain surface gratings have a smooth finish, suitable for low-traction environments or decorative applications where aesthetics are a priority. Serrated surface gratings, on the other hand, have raised teeth or ridges that significantly enhance slip resistance, making them ideal for outdoor walkways, stair treads, and areas prone to moisture, oil, or snow buildup. The slip coefficient of serrated gratings can reach 0.85, 60% higher than that of plain gratings.

Safety gratings, also known as grip strut gratings, are designed specifically for high-safety applications, such as industrial walkways, ramps, and stair treads, featuring enhanced slip resistance and load-bearing capacity. They are often serrated or have a raised pattern to prevent slips and falls, even in harsh conditions.

4. Conclusion

Metal gratings are available in a wide range of types, each tailored to specific application requirements. Whether classified by manufacturing process (welded, press-locked, swage-locked, riveted, expanded), material (carbon steel, stainless steel, aluminum, specialty alloys), or surface design (plain, serrated), each type offers unique advantages in terms of strength, corrosion resistance, aesthetics, and cost-effectiveness.

Understanding the different types of metal gratings is crucial for selecting the right product for a given application—from heavy-duty industrial platforms to decorative architectural facades, from corrosive marine environments to lightweight residential sun shades. With their versatility, durability, and adaptability, metal gratings continue to be a fundamental material in modern infrastructure and construction, meeting the diverse needs of industries worldwide.
