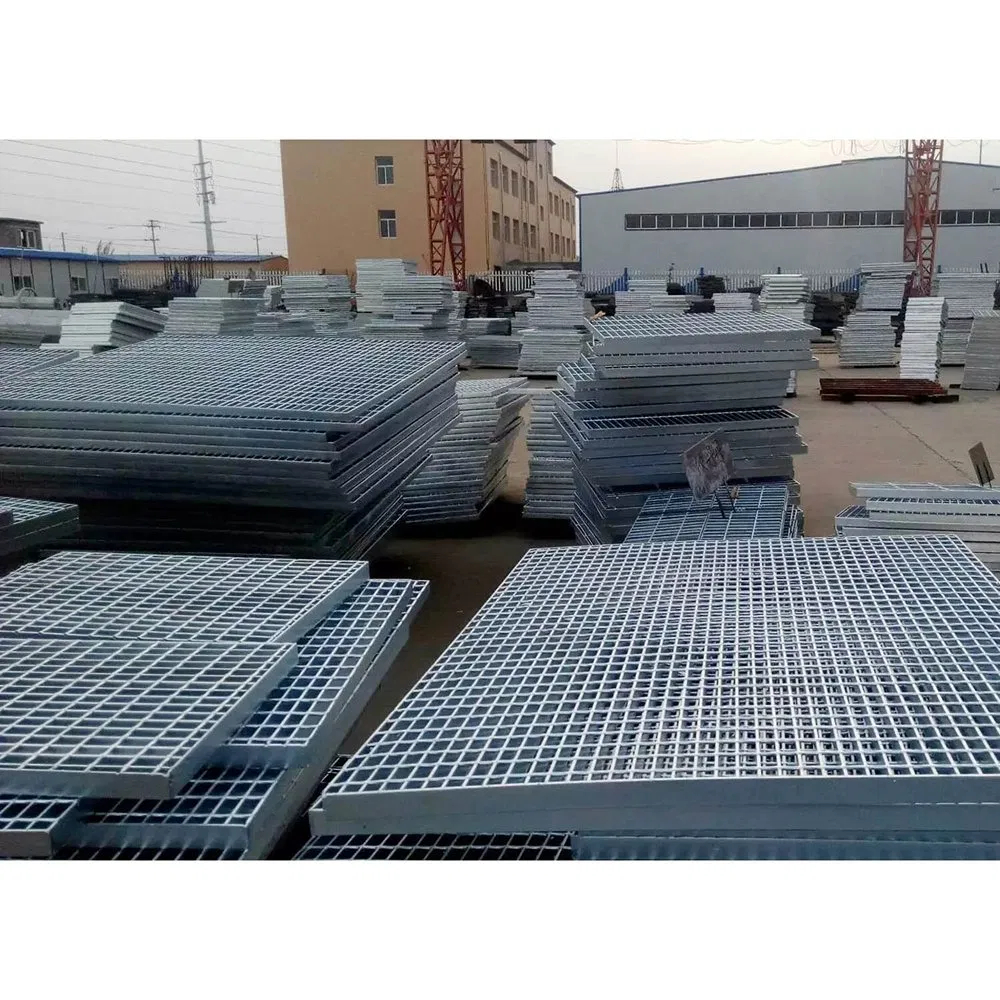

What Should Be Considered When Designing Galvanized Steel Grating for Optimal Load-Bearing Performance?

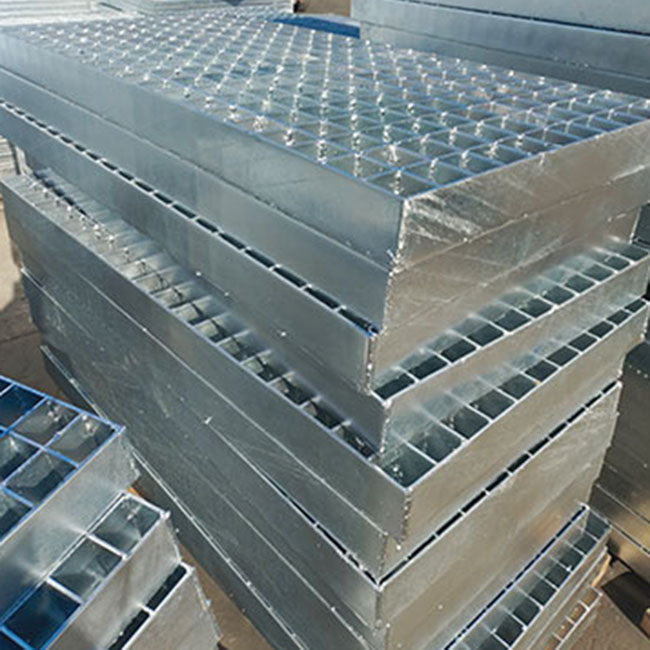

1. Bearing Bar Specifications: The Foundation of Strength

• Section Profile: The shape of the bearing bar significantly impacts its strength-to-weight ratio.

• I-Bar (I-Shape): Offers superior strength and rigidity compared to flat bars of the same weight, making it ideal for spans where deflection control is crucial.

• Flat Bar: The standard choice for most applications, providing reliable performance at a lower cost.

• Trench Drain Grating: Often features a serrated or bulbous profile for added strength and slip resistance.

• Thickness and Height: Simply put, taller and thicker bars can carry more weight. However, designers must balance this with the overall weight of the structure and material costs.

• Spacing (Pitch): The distance between bearing bars directly affects load capacity. Closer spacing (e.g., 19W4) provides higher load capacity than wider spacing (e.g., 40W1) for the same bar size.

2. Cross Bar Configuration: Stability and Distribution

• Welded vs. Press-Locked:

• Welded Grating: Welds at each intersection create a rigid panel that effectively distributes loads laterally.

• Press-Locked Grating: Utilizes a mechanical lock, offering excellent structural integrity and often higher strength-to-weight ratios than welded grating, especially in certain deflection scenarios.

• Spacing: Closer cross bar spacing increases the panel's resistance to torsion and prevents the bearing bars from twisting under heavy loads.

3. Span Length and Support Conditions

• Span Limitations: As the span increases, the required size of the bearing bar must increase exponentially to prevent excessive deflection.

• Support Framing: The grating is only as strong as its supports. Designers must ensure that the supporting beams or angles are properly sized and that the grating has sufficient bearing length (typically a minimum of 2 inches or 50mm) on the supports to prevent failure at the connection points.

4. Material Grade and Yield Strength

• Carbon Steel: The most common choice, typically conforming to ASTM A36 or A1011 standards.

• High-Strength Low-Alloy (HSLA) Steel: For applications requiring higher strength without increasing thickness, HSLA steel (e.g., ASTM A572 Grade 50) can be specified to achieve greater load-bearing capacity.

5. Surface Treatment and Corrosion Resistance

• Hot-Dip Galvanizing: This process coats the steel with zinc, which acts as a sacrificial anode. However, the zinc layer adds thickness to the bars.

• Impact on Tolerances: Designers must account for the zinc build-up, especially in tight-fitting applications or when calculating clearances. Additionally, ensuring a uniform zinc coating is crucial for long-term structural integrity in harsh environments, as corrosion weakens the cross-sectional area of the bars over time.

6. Deflection Criteria: Safety vs. Comfort

• Maximum Deflection: Industry standards (such as those from the National Association of Architectural Metal Manufacturers - NAAMM) often recommend a maximum deflection limit of L/200 (span length divided by 200) for walkways to prevent a "spongy" feel underfoot and to protect associated flooring materials or equipment.
